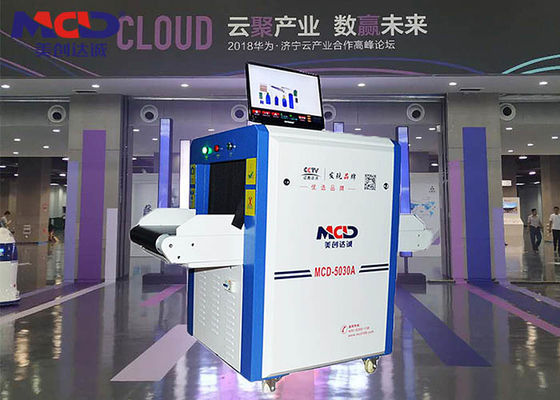

High Performance X Ray Inspection Machine / X Ray Security Detector Device

China High Performance X Ray Inspection Machine / X Ray Security Detector Device supplier
High Performance X Ray Inspection Machine / X Ray Security Detector Device supplier High Performance X Ray Inspection Machine / X Ray Security Detector Device supplier High Performance X Ray Inspection Machine / X Ray Security Detector Device supplier High Performance X Ray Inspection Machine / X Ray Security Detector Device supplier

Large Image :  High Performance X Ray Inspection Machine / X Ray Security Detector Device

Product Details:

Place of Origin: China
Brand Name: MCD
Certification: ISO , CE
Model Number: MCD-5030C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Strong Wooden Case
Delivery Time: Normally within 5 working days
Payment Terms: T/T , Western Union , L/C
Supply Ability: 300 set/month
Contact Now
Detailed Product Description
Tunnel Size: 500(W)*300(H)mm Conveyor Speed: 0.22m/s
Conveyor Max Load: 170kg Dose Per Inspection: <2.9uGy/h
Resolution: <0.101mmMetal Wire Color Display: Full Color
Penetration: 34mm Steel Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <0.05 UGy/h (at A Distance Of 5cm From External Housing) Anode Voltage: 80Kv

High Performance X Ray Inspection Machine / X Ray Security Detector DeviceHigh Performance X Ray Inspection Machine / X Ray Security Detector Device



General Specification:

  • Tunnel Size: 500(W)*300(H)mm
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 170kg
  • Dose per Inspection: <2.9 uGy/h
  • Resolution: <0.101mmMetal Wire
  • Spatial resolution Level:diaφ1.0mm , Vertical:diaφ1.0mm
  • Through resolution:φ0.202mm
  • Penetration: 34mm Steel
  • Film Safety: Guarantee ISO1600 Film
  • X-ray Leakage: <0.05 uGy/h (at a distance of 5cmFrom external housing)


X-ray Generator:

  • Generate direct: Upward
  • Generate angle: 80 degree
  • Anode Voltage: 80Kv
  • Anode power: 0.4 to 0.5mA
  • Cooling / Duty Cycle: Oil Cooling /100%



Image System:

  • X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
  • Monitor: High Resolution Color, LCD Accord, 17 inch
  • Detector:2
  • Color display:full color
  • Image Processing: Edge enhancement, image strengthening,
  • Image lightening, reducing darkening, image returning, image retrieval.
  • Image Grey Level: 4096
  • Image Max Resolution: 1024 * 1280 pixel
  • Image Processing: 24bit for processing real time
  • Image storage: Storage 60000 pictures in real time
  • Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge,
  • Whole screen continuous observation
  • Multi-energetic distinguish objects: organic objects in orange,inorganic objects in blue,
  • mixture in green



Installation Data:

  • Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
  • Storage Temperature/Humidity: -20℃~60℃/20%-95%(non-condensing)
  • Operation Power:220AVC/(±10)50Hz±3Hz
  • Power Consumption:1.0KW(Max),0.3KW(working)
  • Noise: <55 dB



Feature and Application:



X-rays through inspection,Which show object interior metal structure by LCD screen.

Applied to factory inspection products and institutions of the security. Such as electronic factory,

shoe factories, toy factories, court and station, as well as large activities handbag security.



Company information


*Established in 2005
*With more than 300 people, among of which R&D 15 staffs, QC 22 people
*Main products: X-Ray Luggage Scanner Handheld Metal Detector, Food Metal Detector, Underground Metal Detector, Under Vehicle Search System, Walkthrough Metal Detector Gate.
*Main market: Africa, South America, East Europe, Southeast Asia, Middle East etc.
*Certificates: ISO9001:2008, CE, RoHS, FCC, SONCAP
*Area: 12,000 Square meters



Factory show time:

Shenzhen MCD Electronics Co.,Ltd is a large-scale security equipment manufacturer, which interprets R&D, manufacturing and marketing together. Founded in 2005, MCD mainly concentrated on developing Metal Detector, Electronic Article Surveillance(ESA) devices, Food Packaging Testers, X-Ray Package Checkers, Under Vehicle Inspection Equipments, Explosion-proof equipments ect. Our products include Walk through Metal Detector Doors, Underground Metal Detectors, Handheld Metal Detectors, ESA for supermarkets and libraries, Needle Detection Machines, X-ray Inspection equipments, Under Vehicle Inspection Mirrors, ect. Our products have been widely used in airports, embassies, army, prisons, prosecutions, government agencies, customs, ports, large public events and exhibitions, as well as places need valuable security. Cooperating with many well-known foreign companies equipped us with strong technology strengths, speedy products development. With strict management regulations, our products strictly produced under the ISO9001:2008 standard. With more than 3000 square meters production workshop, full flow operation, full-equipped production and testing equipments, we promise to offer the best products for our clients.
Under the solid strength of the company, excellent R&D team, impressive stability and performance product assure R&D purposes and offering most affordable price to clients as our early design purpose, we have established, mutual beneficial, win-win and long-term cooperation relationship with our clients. With the effort of all our staff, our company has developed into a leader manufacturer in safety testing equipment industry just in a few years.
Our company located in Chunhu Industrial Zone, Egongling,Shenzhen city, GuangDong Province, which is the junction of Shenzhen and Dongguan.It’s convenient for traffic and also with exquisite environment. Products have already passed CE, FCC, SONCAP, ROHS international certification tests,etc. We are sure to be the best trading partner of foreign buyers and foreign trade companies. We are a company with self achievement, servicing to the community as a starting point, and building a harmonious society as the management objective. Friends from all over the world are welcome to come to our company to visit and extend cooperation with us. Making the due contribution to the human security is our greatest honor.


x ray detecting machine



High Performance X Ray Inspection Machine / X Ray Security Detector Device



Welcome to contact us!Safety future, stability world
