Large Size X Ray Baggage Inspection Mcahine for Wharf / Port Security Check

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-10080
Minimum Order Quantity 1 set
Price Negotiable

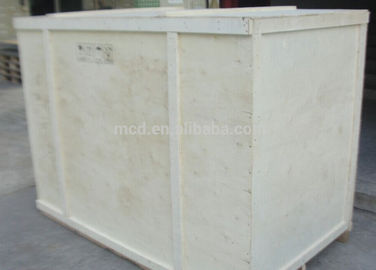

Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tunnel Size 1000(W)*800(H)mm Conveyor Speed 0.22m/s
Conveyor Max Load 200kg Dose Per Inspection <1.7uGy/h
Wire Resolution <0.101mm Metal Wire Spatial Resolution Level:Ф1.3 Mm Vertical:Ф1.0 Mm
Through Resolution Ф0.254 Mm Penetration 40mm Steel
Generate Angle 80degree Noise <58dB
High Light

x ray inspection equipment

,

security x ray machine

Leave a Message
Product Description

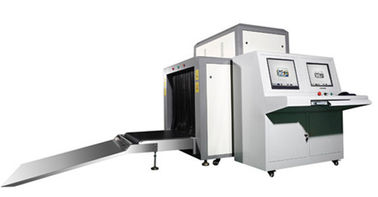

Large Size X Ray Baggage Inspection Mcahine for Wharf / Port Security Check





General Specification

  1. Tunnel Size:1000(W)*800(H)mm
  2. Conveyor Speed:0.22m/s
  3. Conveyor Max Load:200kg
  4. Dose per Inspection:<1.7uGy/h
  5. Wire Resolution:<0.101mm Metal Wire
  6. Spatial Resolution:level:Ф1.3 mm   Vertical:Ф1.0 mm
  7. Through Resolution:Ф0.254 mm
  8. Penetration:40mm Steel
  9. Film Safety:Guarantee ISO1600 Film
  10. X-ray Leakage:<0.1uGy/h (at a distance of 5cm from external housing)



X-ray Generator

  1. Generate Direct:Downward
  2. Generate Angle:80degree
  3. Anode Voltage:100-160Kv
  4. Anode Power:0.4 to 1.2 MA
  5. Cooling/Duty Cycle:Oil Cooling/100%



Image System



  1. X-ray Sensor:L-Shaped Photodiode Array(monoenergetic),12 bit Deep

  2. Monitor:High Resolution Color,LCD Accord,17 inch

  3. Image Processing:Edge enhancement,Image Strengthening,Image Lighting,Reducing Darkening,

                                  Image Returning,Image Retrieval.

  4. Image Grey Level:4096

  5. Image Max Resolution:1024*1280 pixel

  6. Image Processing:24bit for processing real time

  7. Image storage:Storage 60000 pictures in real time

  8. Zones&Zoom:1-9 image regions,2,4,8,16 Times Enlarge,Whole Screen Contiunous Observation

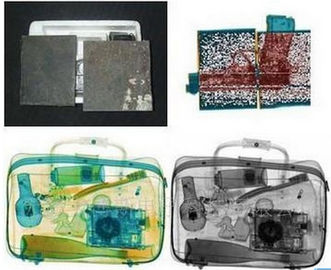

  9. Multi-energetic Distinguish Objects:Organic objects in orange,inorganic objects in blue,

      mixture in green

  10. High-energy/low energy:switch from high energy to low energy

  11. Assist to detect drug and explosive powder





Installation Data

  1. Operation Temperature/Humidity:0℃~45℃/20%-95%(non-condensing)
  2. Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
  3. Operation Power:220VAC(±10%)50±3Hz
  4. Power Wastage: 1.0KW(max),1.0KW(working)
  5. Noise: <58dB
