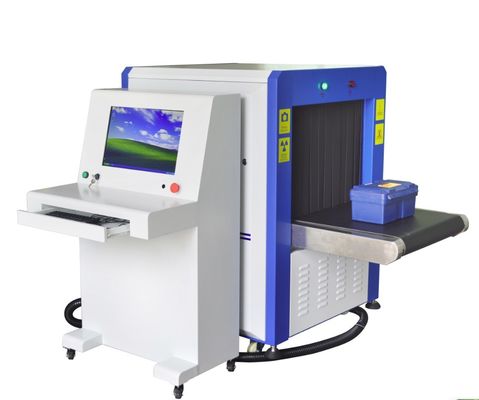

0.22 M / S Airport Baggage Scanner Metal Detector Machine With 650 X 500mm Tunnel Size

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD6550
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tunnel Size 650(W)*500(H)mm Conveyor Speed 0.22m/s
Conveyor Max Load 170kg Dose Per Inspection <1.4uGy/h
Resolution <0.0787mmMetal Wire Penetration 40 Mm Steel
Through Resolution φ0.254mm Color Display Full Color
Spatial Resolution Level Diaφ1.0mm , Vertical:diaφ1.0mm X-ray Leakage 0.05 UGy/h (at A Distance Of 5cmFrom External Housing)
High Light

airport baggage scanners

,

security screening equipment

Leave a Message
Product Description

0.22 M / S Airport Baggage Scanner Metal Detector Machine With 650 X 500mm Tunnel Size









0.22 M / S Airport Baggage Scanner Metal Detector Machine With 650 X 500mm Tunnel Size 0

0.22 M / S Airport Baggage Scanner Metal Detector Machine With 650 X 500mm Tunnel Size 1

Product Parameters:



General Specification:



Tunnel Size 650(W)*500(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 170kg
Dose per Inspection <1.4uGy/h
Resolution <0.0787mmMetal Wire
Spatial resolution Level diaφ1.0mm , Vertical:diaφ1.0mm
Through resolution φ0.254mm
Penetration 34mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage 0.05 uGy/h (at a distance of 5cmFrom external housing)






X-ray Generator:



Generate direct Upward
Generate angle 80 degree
Anode Voltage 100~160Kv
Anode power 0.4 to 1.2mA
Cooling / Duty Cycle Oil Cooling /100%



Image System:



X-ray Sensor L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Detector 2
Color display full color
Image Processing

Edge enhancement, image strengthening, Image lightening,

reducing darkening, image returning, image retrieval.

Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24 bit for processing real time
Image storage Storage 60000 pictures in real time
Zones & Zoom

1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen

continuous observation

Multi-energeti distinguish objects

organic objects in orange,inorganic objects in blue,

mixture in green

High-energy

/low energy

switch from high energy to low energy





Installation Data:



Operating Temperature 0℃~45℃
Operating Humidity 20%-95%(non-condensing)
Storage Temperature -26℃~60℃
Storage Humidity 20%-95%(non-condensing)
Operation Power 220AVC/(±10)50Hz±3Hz
Power Consumption 1.0KW(Max)
Noise <65 dB





Feature and Application:



X-rays through inspection,Which show object interior metal structure by LCD screen.

Applied to factory inspection products and institutions of the security. Such as electronic factory,

shoe factories, toy factories, court and station, as well as large activities handbag security.
