17 Inch Lcd Monitor X Ray Airport Baggage Scanner 24 Bit For Image Processing

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number 5030A
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month
Product Details
Tunnel Size 500(W)*300(H)mm Conveyor Speed 0.22m/s
Conveyor Max Load 150kg Penetration 14 Mm Steel
Warranty 12 Months Film Safety Guarantee ISO1600 Film
Generate Direct Upward Generate Angle 80 Degree
Anode Voltage 80 Kv Anode Power 0.4 To 0.5 MA
Cooling Oil Cooling Duty Cycle 100 %
High Light

airport security baggage scanner


baggage scanner machine

Leave a Message
Product Description

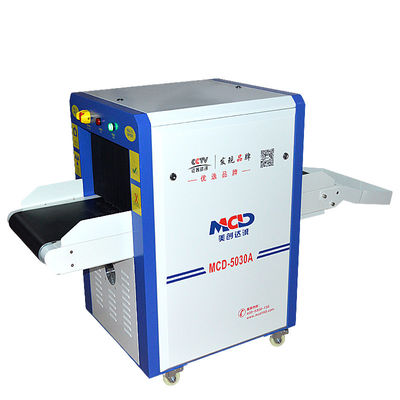

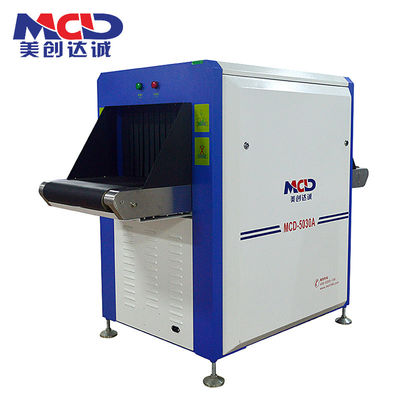

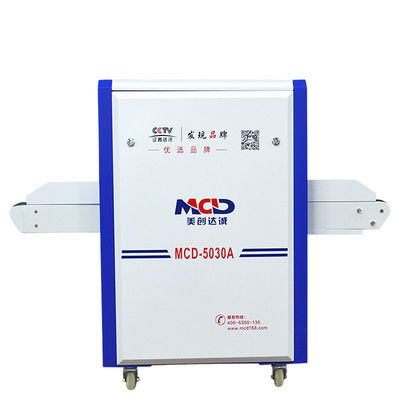

17 Inch Lcd Monitor X Ray Airport Baggage Scanner 24 Bit For Image Processing

17 Inch Lcd Monitor X Ray Airport  Baggage Scanner 24 Bit For Image Processing 0

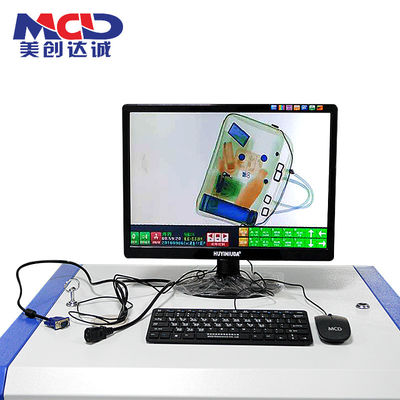

X-rays through inspection,Which show object interior metal structure by LCD

screen.Applied to factory inspection products and institutions of the security.

Such as electronic factory, shoe factories, toy factories, court and station, as

well as large activities handbag security.



Parameter :


Name MCD-5030A
Type X-ray Scanner
Tunnel Size 500(W)*300(H)mm
Power Supply 220V
Power Consumption 1.0 KW (max)
Penetration 8mm Steel
Operating Temperature 0C° to +45C°
Size 1650(L) ×725(W) × 1200(H)mm
MOQ 1 set
Net Weight 350 kg
Gross Weight 400 kg
Warranty 12 Months
Package packed in wooden case
Delivery within 7 working days after payment confirmed




  • Commercial buildings
  • Factories(to find needle in clothing, shoes, bags)
  • Courthouses
  • Embassies
  • Government buildings
  • Military installations
  • Prisons
  • Hotels
  • Schools
  • Convention centers
  • Security checkpoints


Competitive Advantage:

  • Innovative & Economical

  • World Class Reliability
  • Long-Term Flexibility
  • Ease of Use Increases Efficiencies
  • Ease of Maintenance
  • Competitive Price and Professional Service


Shipping Means

  1. By express (3-5days, most expensive)
  2. By air (5-7days, expensive)
  3. By sea (15-28days, cheapest)


MCD has been supplying quality products worldwide for over,40 countries, 10 years, with wide product line consists of 6 groups, includes:

  • X-ray luggage scanner
  • Walkthrough metal detector gate
  • Food metal detector
  • Underground metal detector
  • Hand-held metal detector
  • Under Vehicle search system
