34 mm Steel Penetrate X Ray Baggage Scanner Machine In Subway Metro Railway

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-6550C
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden Case Package
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month
Product Details
Dose Per Inspection <1.4uGy/h Tunnel Size 650(W)*500(H)mm
Resolution <0.0787mmMetal Wire Penetrate Resolution Dia 0.254mm
Conveyor Speed 0.22m/s Penetration 34mm Steel
Conveyor Max Load 170kg Generate Direct Upward
Anode Voltage 100~160Kv Anode Power 0.4 To 1.2mA
High Light

airport baggage scanners

,

security screening equipment

Leave a Message
Product Description

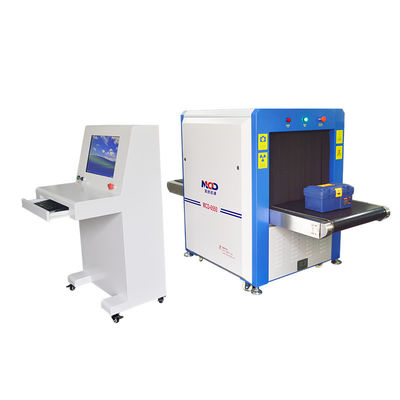

34 mm Steel Penetrate X Ray Baggage Scanner Machine In Subway Metro Railway



34 mm Steel Penetrate X Ray Baggage Scanner Machine In Subway Metro Railway 0

General Specification

  •  Tunnel Size: 650(W)*500(H)mm
  •  Conveyor Speed: 0.22m/s
  •  Conveyor Max Load: 170kg
  •  Dose per Inspection: <1.4uGy/h
  •  Resolution: <0.0787mmMetal Wire
  •  Spatial resolution Level:dia1.0mm , Vertical:dia1.0mm
  •  Penetrate resolution:Dia 0.254mm
  •  Penetration: 43mm Steel
  •  Film Safety: Guarantee ISO1600 Film
  •  X-ray Leakage: <0.05 uGy/h (at a distance of 5cm From external housing)



X-ray Generator

  •  Generate direct: Upward
  •  Generate angle: 80 degree
  •  Anode Voltage: 100~160Kv
  •  Anode power: 0.4 to 1.2mA
  •  Cooling / Duty Cycle: Oil Cooling /100%



Image System



X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor:  High Resolution Color, LCD Accord, 17 inch
Detector: 2
Color display: full color
Image Processing: Edge enhancement, image strengthening,

image lightening,reducing  darkening, image returning, image retrieval

Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom:

1-9 Image regions, 2,4,8,16 Times Enlarge,

Whole screen continuous observation

Multi-energetic

distinguish objects:

organic objects in orange,inorganic objects in blue, mixture in green
High-energy/low energy: switch from high energy to low energy





Installation Data

  •  Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
  •  Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
  •  Operation Power:220AVC/(±10)50Hz±3Hz
  •  Power Consumption:1.0KW(Max)
  •  Noise: <65 dB





Feature and Application:



X ray penetrate inspection, the object can be found within the metal structure, can display the naked eye can not see where the liquid is also very obvious object display.Used in the factory testing of security

products and business units such as: electronic factories, shoe factories, toy factories, courts, railway

stations, and event bag, line security management package.
