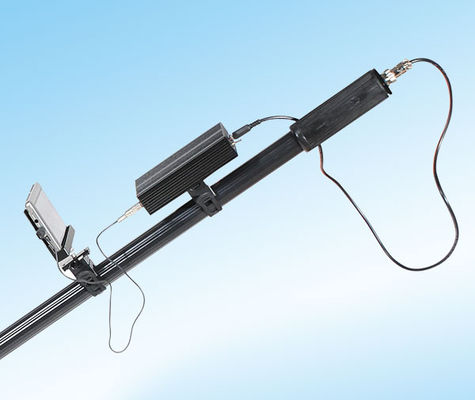

7 Inch Lcd Screen Under Vehicle Inspection Camera MCDv6s Enconomical and new product under car inspection
|Dimension||23mmx50mm.||Camera Lens||Sapphire Blue|
|Camera Casing||Stainless Steel 304||Lens Visible Angle||360 Degrees|
|Waterproof Standard||IP68||Working Temperature||-10℃-50℃|
|LCD Dimension||7-inch, 16：9||Camera Light Source||12 LEDs|
|Rod Max Length||3.1m||Sensor Dimension||1/4 Inch|
under vehicle surveillance system,
under vehicle camera
4.3 Inch Lcd Screen Under Vehicle Inspection Camera with Dc12v Rechargeable Battery
Thank you for using the product! It is our latest developed HD video searching system.
With state-of-art innovation technology, it helps security personnel to check clearly on front video
display the spaces where are narrow, dark and cannot be reached by naked eyes. It will simplify
troublesome inspection work and help save plenty of valuable time, improving security check efficiency.
The product uses high-capacity Lithium battery for power supply which lasts 6 hours,avoiding frequent
battery replacements. The standard aluminum-alloy carry case is solid enough to prevent equipment
from damage by drop, shock or press. For detailed instructions, please refer to the operation manual.
- 1. Dimension: 23mmx50mm.
- 2. Flexible pipe: 500mm
- 3. Camera casing:Stainless steel 304
- 4. Camera lens: Sapphire blue
- 5. Sensor dimension:1/4 inch
- 6. Senor pixel:PAL@720X576/NTSC: 720X480
- 7. Lens visible angle: 120 degrees
- 8. Camera adjustable angle: Arbitrary angle
- 9. Camera light source: 12 LEDs10.
- 10. Waterproof standard: IP68
- 11. Working voltage: DC 12V,
- 12. working current: 100mA
- 13. Rod Max length: 3.1m
- 14. Working temperature:-10℃-50℃
- 1. LCD dimension: 4.3-inch, 16:9
- 2. Resolution:480*320*RGB
- 3. Power supply:5V DC
- 4. SNR:85dB
- 5. USB:2.0(speed)
- 6. Output:20Hz---20KHz
- 7. Connecting Rod Length:3.2M
- 8. Supplementary lighting: 12LEDs
- 9. N.W: 1250G
- 10. G.W:5.8KG
- 11. Package Size: 110*30*30CM(2pcs/ctn)
Feature and Application:
High definition flexible hose camera, suitable for different angles and special occasions,
equipped with 4.3 inch LCD screen display multimedia storage image playback, showed more clear,
with infrared light supplement can be used for the dark place or use at night, portable-type pipe,
A single-hand operation to check the height. Applied to check the car table under stools or container
and others special occasions if they are normal, security antiterrorism after the earthquake
search tool life.
