Airport Security X-Ray Luggage Scanner , Gun Knife Metal Detector

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-5030C
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Wooden case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

airport metal detector

,

airport security metal detectors

Leave a Message
Product Description

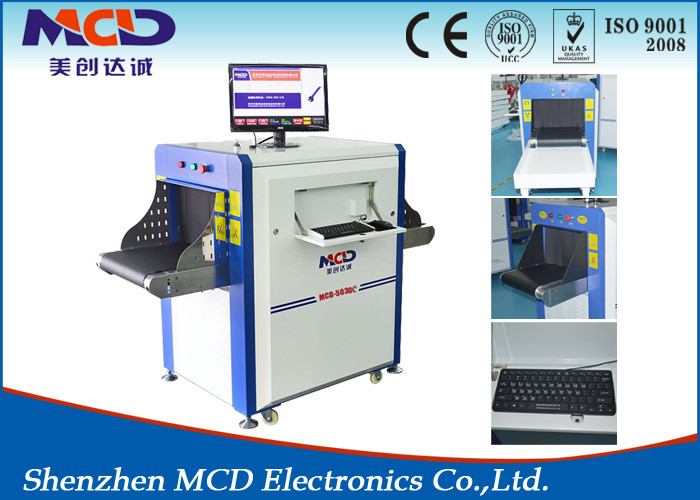

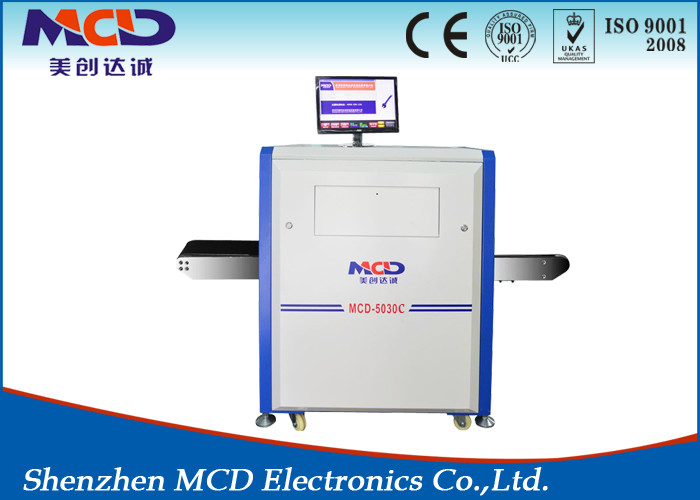

Airport Security X-Ray Luggage Scanner , Gun Knife Metal Detector



Airport Security X-Ray Luggage Scanner , Gun Knife Metal Detector 0

General Specification:


Tunnel Size: 500mm×300mm
Conveyor Speed: 0.23m/s
Conveyor height : 670mm
Conveyor Max Load:170kg
X ray Dose per inspection <0.5uGy
Wire Resolution:38AWG Guarantee  40 AWG tapical
Spatial resolution Level: dia1.0mm,Vertical: dia1.0mm
Penetration: 34 mm steel guarantee
Penetration Resolution :32AWG ,the wire visible below 22mm thick aluminum
Film Safety :Guarantee ASA/ISO1600 Film
X-ray Leakage: <0.1 μGVy/h (at a distance of 5cm From external housing)
--------------------------------------------------------------------------------------------------------------------------------
Image System:

Technical Principle: Dual-energy X-ray Imaging; Double L Shaped Array,448 detectors
Image Display: High resolution of 1280×1024;
Image Enhancement: 1-64 times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall: All preceding images recallable
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection: Inserting fictional, but realistic images of threat items into
baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive: Up to 80,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications: Multiple remote applications available based on Ethernet LAN and
windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc.
Images process:24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags ,Memory gray level:4096

---------------------------------------------------------------------------------------------------------------------------------



X-ray Generator


Generate direct: from bottom to top
Anode Voltage: 140kv

Cooling / Duty Cycle: Oil Cooling /100%

Computer Character
Computer CPU: Intl Core 2 Duo 3400, 2.6GHz, 1MB, L2 Cache and 800Mhz FSB Little low version, Motherboards: Intel G41, Bus architecture: Integrated Graphics,5PCI, 1PCI Express *1and 1PCI BX press *16 , Memory: 2GB 1333MHz DDR3 RAM, with Minimum2 total DIMM slots. Better, Hard Disk drive: 500GB 7200 rpm serial ATA
Other Characters
Support Video image storage and screening system
Extension Rollers: Optional (50cm length roller)
UPS camera system and photographic system Optional
Support card reader operator access
CD DVR/RW unit: Optional
it have vents and transparent parts
Duty Cycle: 100% without initial time
Computer system: XP system
Two LCD monitor: 17 inch DELL brand or 19inch monitor
---------------------------------------------------------------------------------------------------------------------------------
Operating Environment

Operation temperature/Humidity: 0-45/20%-95%(non-condensing)
Storage Temperature/Humidity: -40~+60 / 5%~95% (non-condensing)
Operation Power: 220VAC(±10%)50±3Hz (100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.4 KW (max), 1.3KW(working)
Noise: <58db
---------------------------------------------------------------------------------------------------------------------------------
Dimension Size

Dimensions (L×W×H) :1662mm x 750mm x1160mm
Weight: 355Kg
