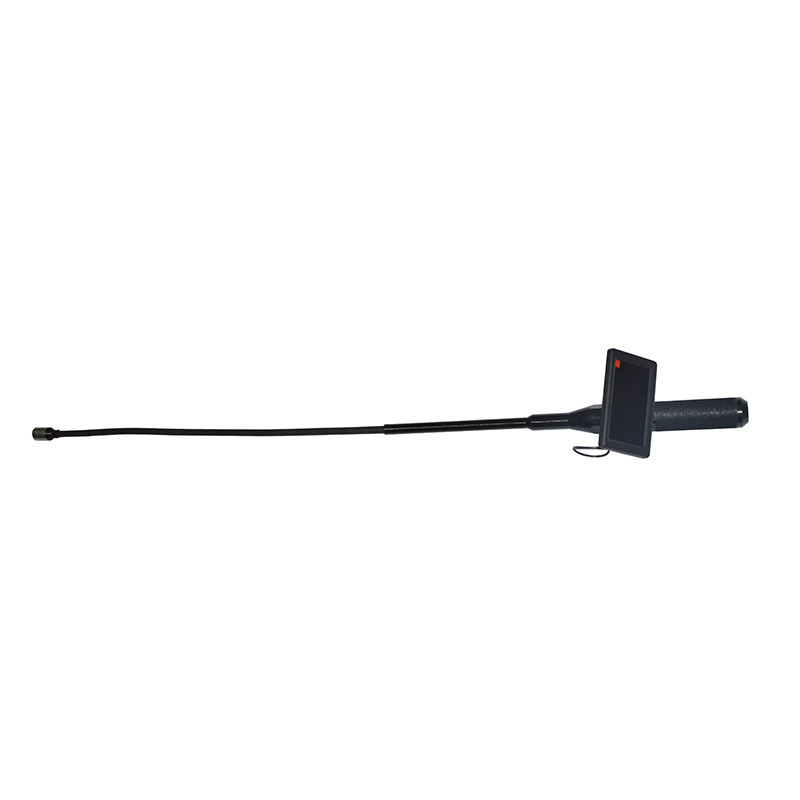

Arbitrary Angle Ip68 Under Vehicle Camera With 4.3 Inch Rgb Screen

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-V6S
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details Package Size: 110*30*30CM(2pcs/ctn)
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 2000 pcs/month
Product Details
Dimension 23mmx50mm. Flexible Pipe 500mm
Camera Casing Stainless Steel 304 Lens Visible Angle 120 Degrees
Waterproof Standard IP68 Power Supply 5V DC
LCD Dimension 4.3-inch, 16:9 Resolution 480*320*RGB
Rod Max Length 3.1m
High Light

automotive Inspection Mirror

,

explosive detection equipment

Leave a Message
Product Description



Arbitrary Angle Ip68 Under Vehicle Camera With 4.3 Inch Rgb Screen





Product Introduction:



Thank you for go through the product! It is our latest developed HD video searching system.

With state-of-art innovation technology, it helps security personnel to check clearly on front video

display the spaces where are narrow, dark and cannot be reached by naked eyes. It will simplify

troublesome inspection work and help save plenty of valuable time, improving security check efficiency.

The product uses high-capacity Lithium battery for power supply which lasts 6 hours,avoiding frequent

battery replacements. The standard aluminum-alloy carry case is solid enough to prevent equipment

from damage by drop, shock or press. For detailed instructions, please refer to the operation manual.





Product Parameters:



Waterproof Camera

  •  1. Dimension: 23mmx50mm.
  •  2. Flexible pipe: 500mm
  •  3. Camera casing:Stainless steel 304
  •  4. Camera lens: Sapphire blue
  •  5. Sensor dimension:1/4 inch
  •  6. Senor pixel:PAL@720X576/NTSC: 720X480
  •  7. Lens visible angle: 120 degrees
  •  8. Camera adjustable angle: Arbitrary angle
  •  9. Camera light source: 12 LEDs.
  •  10. Waterproof standard: IP68
  •  11. Working voltage: DC 12V,
  •  12. working current: 100mA
  •  13. Rod Max length: 3.1m
  •  14. Working temperature:-10℃-50℃



LCD Screen:

  •  1. LCD dimension: 4.3-inch, 16:9
  •  2. Resolution:480*320*RGB
  •  3. Power supply:5V DC
  •  4. SNR:85dB
  •  5. USB:2.0(speed)
  •  6. Output:20Hz---20KHz
  •  7. Connecting Rod Length:3.1M
  •  8. Supplementary lighting: 12LEDs
  •  9. N.W: 1250G
  •  10. G.W:5.8KG
  •  11. Package Size: 110*30*30CM(2pcs/ctn)





Feature and Application:



High definition flexible hose camera, suitable for different angles and special occasions,

equipped with 4.3 inch LCD screen display multimedia storage image playback, showed more clear,

with infrared light supplement can be used for the dark place or use at night, portable-type pipe,

A single-hand operation to check the height. Applied to check the car  table  under stools or container

and others special occasions if they are normal, security  antiterrorism  after the earthquake

search tool life.



Arbitrary Angle Ip68 Under Vehicle Camera With 4.3 Inch Rgb Screen 0

MCD-V6S User Manual.pdf

MCD-V6S Under vehicle inspector mirror.pdf
