Black Hand Held Metal Scanner / Portable Wand Metal Detector With Headphone Output

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-140
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Carton
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 200000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Alarm Indication Audio Alert And LED Indicator And Vibration Sensitivity ≥11 Cm(for A RMB One YUAN Coin)
Power Supply 9V Fold Battery (6F22ND),Low Battery Indication,can Connect Withcharger, (battery And Charger Are Optional Accessory,not Included ) Quiescent Current <30mA
Body Size 415*90*45mm Net Weight 350g
Gross Weight 445g Color Box Size 425*100*55mm
Package Size 51*28*46cm (25pcs/carton,13kg/carton)
High Light

portable metal detectors


hand held security detector

Leave a Message
Product Description

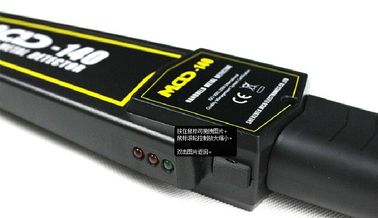

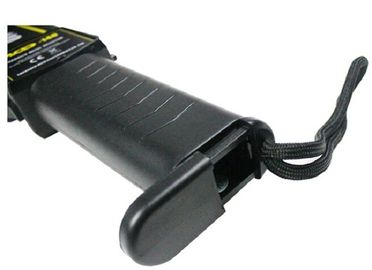

Black Hand Held Metal Scanner / Portable Wand Metal Detector With Headphone Output


Product Parameters:

  • 1. Alarm Indication : Audio alert and LED indicator and Vibration can work together,           with headphone output.(headphone is optional accessory )
  • 2. Sensitivity :≥11cm(for a RMB one YUAN Coin)
  • 3. Power Supply:9V fold battery (6F22ND),can connect with recharger,   (recharger is optional
  • accessory )
  • 4. Quiescent Current :<30mA
  • 5. Operation Current:Audio and LED<62mA ,Vibration<90mA
  • 5. Body Size:415*90*45mm
  • 6. Net Weight: 350g Gross Weight: 445g
  • 7. Color Box size:425*100*55mm
  • 8. Package Size:51*28*45cm (25pcs/carton,12.5kg/carton)


Feature and Application:

  • 1. Highest sensitivity
  • 2. Easy to operate
  • 3. Detection range is stability, not with the battery consumption and reduce detection range.
  • 4. Low power consumption ,40 hours of continuous operation
  • 5. When voltage is below 7V, the low voltage indicator lights.
  • 6. Sound of light and vibration alarm capabilities
  • 7. With charging port and headphone outputs
  • 8. With sound and vibration alarm switch
  • 9. The metal detector is suitable for airports, stations, terminals and other security checks.
  • 10. Applicable to the customs, public security, frontier defense,and safety inspection authoriy
  • 11. Medicine and food quality testing.
  • 12. To the prison address and other important places of safety checks
  • 13. Check for precious metals, such as: gold and silver jewelry manufacturers
