Cargo Luggage X ray Inspection System Train Station Parcel Scanner Machine

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-10080
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Parameters 1000(W)*800(H)mm Conveyor Speed 0.22m/s
Conveyor Max Load 200kg Dose Per Inspection <1.7uGy/h
Resolution Dia1.3mm , Vertical:dia1.0mm Penetrate Resolution Dia 0.511mm
Penetration 40mm Steel Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.1 UGy/h (at A Distance Of 5cm From External Housing) Waranty 1 Year
High Light

airport baggage scanners

,

security screening equipment

Leave a Message
Product Description



Cargo Luggage X ray Inspection System Train Station Parcel Scanner Machine



Product Parameters:



General Specification

Tunnel Size 1000(W)*800(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 200kg
Dose per Inspection <1.7 uGy/h
Resolution <0.101mmMetal Wire
Spatial resolution Level diaφ1.3mm , Vertical:diaφ1.0mm
Through resolution φ0.511mm
Penetration 40mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage 0.1 uGy/h (at a distance of 5cmFrom external housing)



X-ray Generator
 1.Generate direct: Upward
 2.Generate angle: 80 degree
 3.Anode Voltage: 100~160Kv
 4.Anode power: 0.4 to 1.2mA
 5.Cooling / Duty Cycle: Oil Cooling /100%


Image System

X-ray Sensor  L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Detector 2
Color display full color
Image Processing

Edge enhancement, image strengthening, Image lightening,

reducing  darkening, image returning, image retrieval.

Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zones & Zoom

1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen

 continuous observation

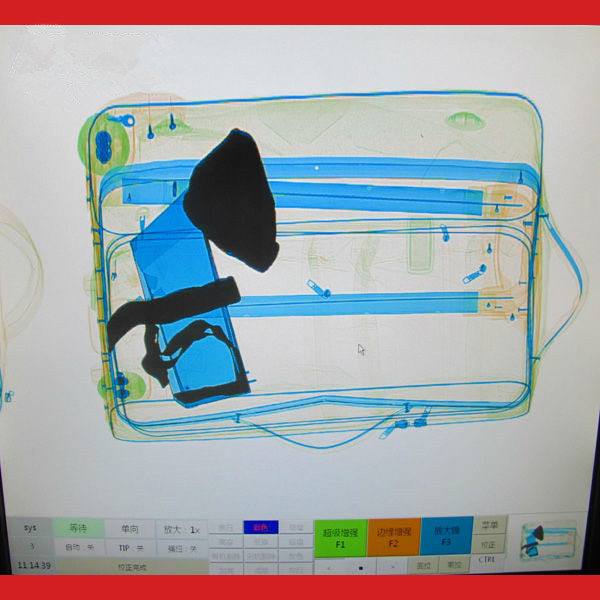

Multi-energeti       distinguish objects

organic objects in orange,inorganic objects in blue,

mixture in green

High-energy

/low energy

switch from high energy to low energy





Installation Data

1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)

2.Storage Temperature/Humidity-26℃~60/20%-95%(non-condensing)

3.Operation Power:220AVC/(±10)50Hz±3Hz

4.Power Consumption:1.0KW(Max)  1.0KW(working)

5.Noise: <58 dB

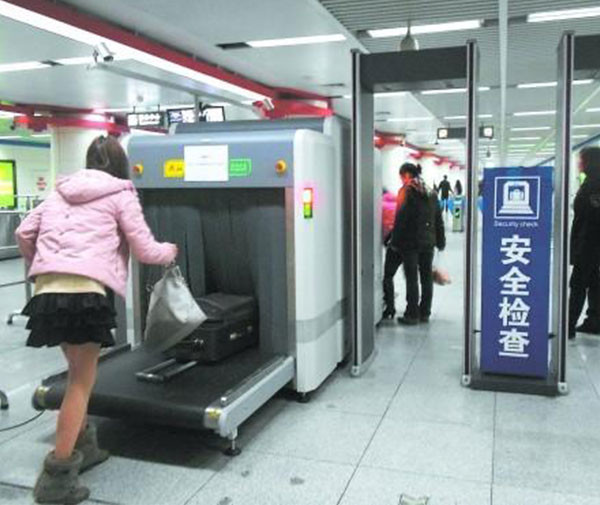

Feature and Application:

X-ray penetrate inspection, the object can be found within the metal structure, can display the

naked eye can not see where the liquid is also very obvious object display.Used in the factory

testing of security products and business units such as: electronic factories, shoe factories,

toy factories, courts, railway stations, and event bag, line security management package
