CE Certificate anti-corrosion material Food Metal Detector 6 inch LCD display

  • CE Certificate anti-corrosion material Food Metal Detector 6 inch LCD display
Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-F500QD
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 100 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
High Light

foodprocessing metal detectors

,

food grade metal detector
Leave a Message
Product Description

CE Certificate anti-corrosion material Food Metal Detector 6 inch LCD display

Quick detail



  • Detecting Method : Magnetic induction detection
  • Alarm Method : Buzzer LED indicator twinkles and shutdown automatically
  • 6 inches of digital circuit touch blue LCD display
  • Detecting Sensitivity : 0.8mm-3.0mm(Fe) , 1.5mm-5.0mm (SUS)
  • Detecting width : 40-120CM
  • Detecting height : 10-50CM
  • Sensitivity adjust : 0-9 Level
  • Conveyor Belt Speed : 40m/min
  • Power Supply :  AC100-265V , 50-60Hz
  • Dimension size : (150-170)cm(L) * (80-90)cm(W) * (85-120)cm(H) (Demand can be made)




Description:


  • it can detect ferrous and non-ferrous and other metal objects ,  the sensitivity can be adjusted separately , with memory function can be stored 10 kinds of test material
  • Detector with audible and visual alarm , and automatically exclude , stop , rewind functions , user-friendly menu , easy to operate touch screen . Machine made of stainless steel , anti-corrosion , no rust , easy to clean up


Application:


It is mainly used for detecting the metal chips inside the nuts , rice , tea and wood processing industry etc.


Specification:



Detecting width:

40-120CM

Detecting height:

10-50CM

Sensitivity adjust:

0-9 Level

Detecting Sensitivity:

0.8mm-3.0mm (Fe),1.5mm-5.0mm (SUS)

Conveyor Belt Speed:

40m/min

Power Supply:

AC100-265V,50-60Hz

Dimension size:

(150-170)cm(L)*(80-90)cm(W)*(85-120)cm(H)



Feature and Application:


1.Dual-loop circuit design , it can detect ferrous and non-ferrous and other metal objects, the sensitivity can be adjusted separately , with memory function can be stored 10 kinds of test material.
2.Detector with audible and visual alarm , and automatically exclude , stop , rewind functions , user-friendly menu , easy to operate touch screen . Machine made of stainless steel , anti-corrosion , no rust , easy to clean up.
3.Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.
4.Detection accuracy over the corresponding provisions of HACCP system Detect indicators.
5.Can use with production line.
6.It is mainly used for detecting the metal chips inside the nuts , rice , tea and wood processing industry etc

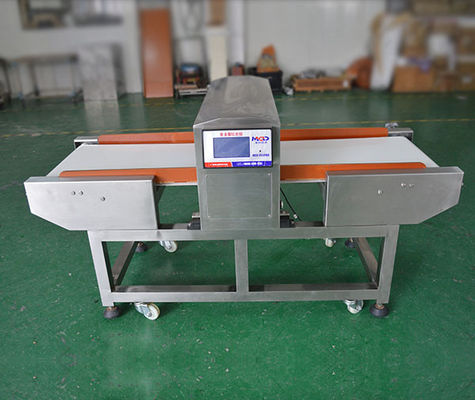

Picture of MCD-F500QD:


MCD-F500QD
