Double Detector X Ray Baggage Scanner , High Resolution Color X Ray Luggage Machine

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-5030C
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month
Product Details
Tunnel Size 500(W)*300(H)mm Conveyor Speed 0.22m/s
Conveyor Max Load 170kg Dose Per Inspection <2.9 UGy/h
Resolution <0.101mmMetal Wire Penetration 34mm Steel
Detector 2 Color Display Full Color
Film Safety Guarantee ISO1600 Film X-ray Leakage 0.05 UGy/h (at A Distance Of 5cmFrom External Housing)
High Light

security screening equipment

,

airport metal detector

Leave a Message
Product Description

Double Detector X Ray Baggage Scanner , High Resolution Color X Ray Luggage Machine





Product Parameters:



Specification :

Name

MCD-5030C

Type

X-ray Scanner

Tunnel Size

500(W)*300(H)mm

Power Supply

220V

Power Consumption

1.0 KW (max)

Penetration

34mm Steel

Operating Temperature

0C° to +45C°

Size

1650(L) ×725(W) × 1200(H)mm

MOQ

1 set

Weight

400kg

Warranty

1 year

Package

One piece is packed in wooden case

Delivery

within five working days after payment confirmed



General Specification
1.Tunnel Size: 500(W)*300(H)mm
2.Conveyor Speed: 0.22m/s
3.Conveyor Max Load: 170kg
4.Dose per Inspection: <2.9 uGy/h
5.Resolution: <0.101mmMetal Wire

6.Spatial resolution Level:diaφ1.0mm , Vertical:diaφ1.0mm

7.Through resolution:φ0.202mm
8.Penetration: 34mm Steel
9.Film Safety: Guarantee ISO1600 Film

10.X-ray Leakage: <0.05 uGy/h (at a distance of 5cmFrom external housing)



X-ray Generator
1.Generate direct: Upward
2.Generate angle: 80 degree
3.Anode Voltage: 80Kv
4.Anode power: 0.4 to 0.5mA
5.Cooling / Duty Cycle: Oil Cooling /100%



Image System
1.X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
2.Monitor: High Resolution Color, LCD Accord, 17 inch

3.Detector:2

4.Color display:full color
5.Image Processing: Edge enhancement, image strengthening,

   Image lightening, reducing  darkening, image returning, image retrieval.
6.Image Grey Level: 4096
7.Image Max Resolution: 1024 * 1280 pixel
8.Image Processing: 24bit for processing real time
9.Image storage: Storage 60000 pictures in real time

10.Zones & Zoom:1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous

observation

11.Multi-energetic distinguish objects:organic objects in orange,inorganic objects in blue,

     mixture in green



Installation Data

1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)

2.Storage Temperature/Humidity-26℃~60/20%-95%(non-condensing)

3.Operation Power:220AVC/(±10)50Hz±3Hz

4.Power Consumption:1.0KW(Max),0.3KW(working)

5.Noise: <55 dB





Feature and Application:

X-rays through inspection,Which show object interior metal structure by LCD screen.Applied to

factory inspection products and institutions of the security. Such as electronic factory,

shoe factories, toy factories, court and station, as well as large activities handbag security.

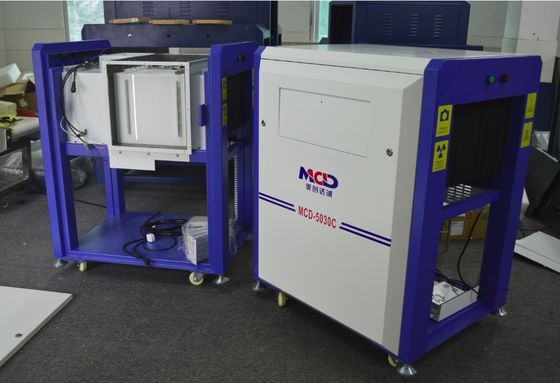

Double Detector X Ray Baggage Scanner , High Resolution Color X Ray Luggage Machine 0
