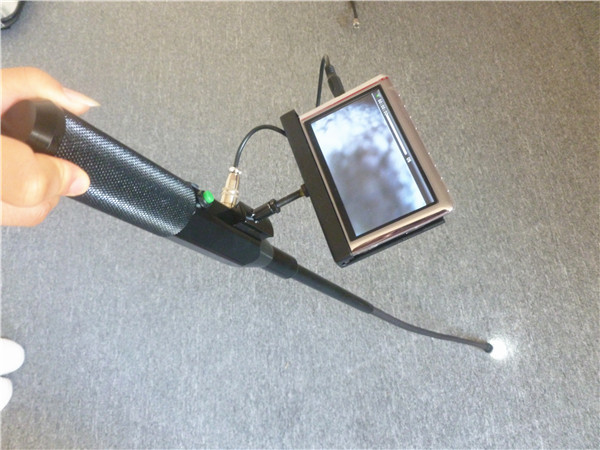

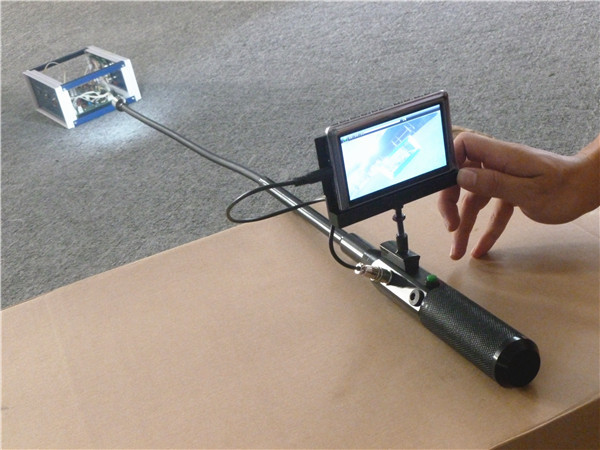

DVR Function Under Vehicle Inspection Camera / Portable Explosive Detector V7D







Product Description







Product Introduction:

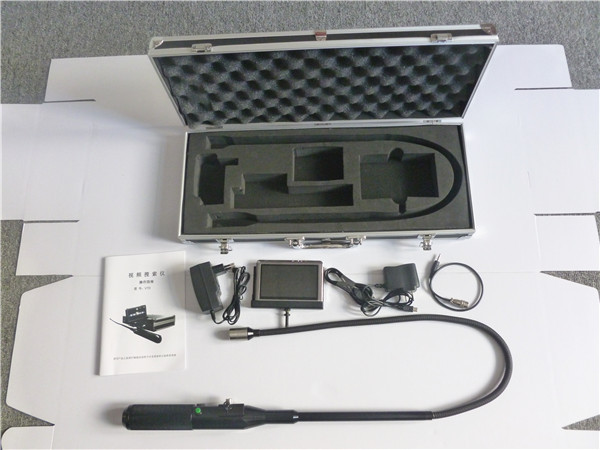

Thank you for purchasing the product! V7D is our latest developed HD Under Vehicle Camera with DVR recording function, it helps security personnel to check clearly on front video display the spaces where are narrow, dark and cannot be reached by naked eyes. It will simplify troublesome inspection work and help save plenty of valuable time, improving security check efficiency. The product uses high-capacity Lithium battery for power supply which lasts 8 hours, avoiding frequent battery replacements. The standard aluminum-alloy carry case is solid enough to prevent equipment from damage by drop, shock or press.



Product Parameters:

Waterproof Camera:

Dimension 23mmx50mm
Flexible pipe 940mm
Camera casing Stainless steel 304
Camera lens Sapphire blue
Sensor dimension 1/4 inch
Senor pixel PAL@720X576/NTSC: 720X480
Lens visible angle 120 degrees
Camera adjustable angle Arbitrary angle
Camera light source 12 LEDs
Waterproof standard: IP68
Working voltage DC 12V, working current: 100mA
Max length 1.16m
Working temperature -10℃-50℃
Gross weight 2.7KG







LCD Screen

LCD dimension 4.3-inch, 16:9
Resolution 480*320*RGB
Power supply 5V DC(Built-in Li-ion battery)
Noise 485Db
USB interface 2.0(High speed)
Output power 20Hz---20KHz





Feature and Application:

It is used for inspection the container and other special occasions if they are normal.Also search life after the earthquake.
