High Performance x ray machine at airport security Inspection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xTunnel Size | 800(W)*650(H)mm | Conveyor Speed | 0.22m/s |
---|---|---|---|
Conveyor Max Load | 200kg | Dose Per Inspection | <1.6uGy/h |
Wire Resolution | <0.0787mm Metal Wire | Generate Direct | Downward |
Anode Voltage | 100-160Kv | Warranty | 12 Months |
High Light | airport security baggage scanner,x ray security scanner |

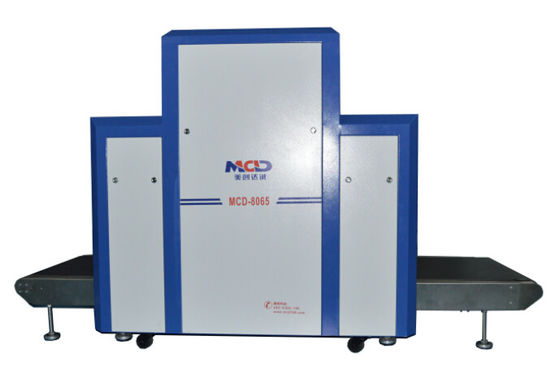

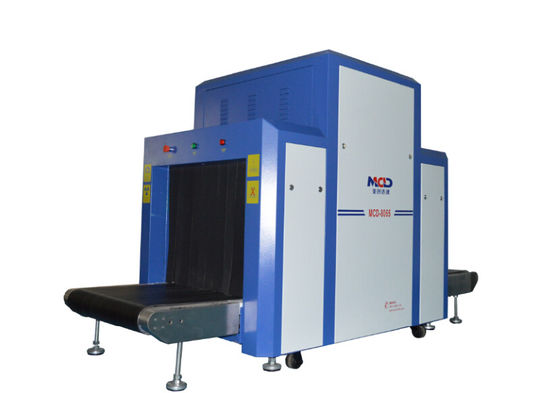

High Performance x ray machine at airport security Inspection
General Specification
Tunnel Size | 800(W)*650(H)mm |
Conveyor Speed: | 0.22m/s |
Conveyor Max Load: | 200kg |
Dose per Inspection: | <1.6uGy/h |
Wire Resolution: | <0.0787mm Metal Wire |
Spatial Resolution: | Ф1.3 mm |
Vertical: | Ф1.0 mm |
Through Resolution: | Ф0.254 mm |
Penetration: | 40mm Steel |
Film Safety: | Guarantee ISO1600 Film |
X-ray Generator
- Generate Direct:Downward
- Generate Angle:80degree
- Anode Voltage:100-160Kv
- Anode Power:0.4 to 1.2 MA
- Cooling/Duty Cycle:Oil Cooling/100%
Image System
- X-ray Sensor:L-Shaped Photodiode Array(monoenergetic),12 bit Deep
- Monitor:High Resolution Color,LCD Accord,17 inch
- Image Processing:Edge enhancement,Image Strengthening,Image Lighting,Reducing Darkening,
- Image Returning,Image Retrieval.
- Image Grey Level:4096
- Image Max Resolution:1024*1280 pixel
- Image Processing:24bit for processing real time
- Image storage:Storage 60000 pictures in real time
- Zones&Zoom: 1-9 image regions,2,4,8,16 Times Enlarge,Whole Screen Contiunous Observation
- Multi-energetic Distinguish Objects: Organic objects in orange,inorganic objects in blue,mixture in green

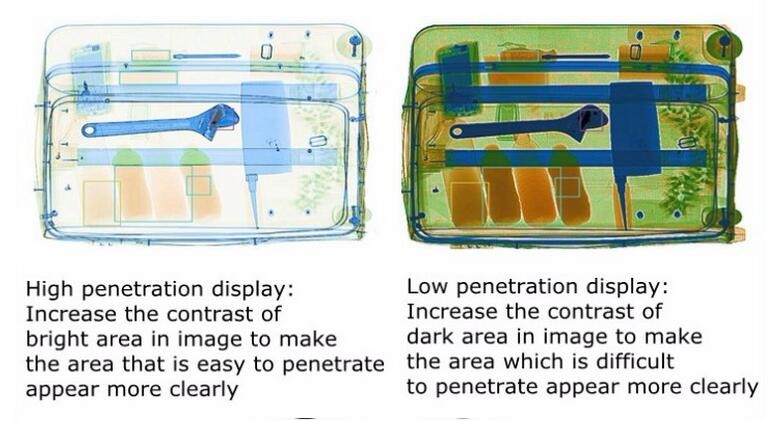

- High-energy/low energy: switch from high energy to low energy
- Assist to detect drug and explosive powder
Installation Data
- Operation Temperature/Humidity:0℃~45℃/20%-95%(non-condensing)
- Storage Temperature/Humidity:-20℃-60℃/20%-95%(non-condensing)
- Operation Power:220VAC(±10%)50±3Hz
- Power Wastage: 1.0KW(max)
- Noise: <58dB
Applications:
- Commercial buildings
- Factories(to find needle in clothing, shoes, bags)
- Courthouses
- Embassies
- Government buildings
- Military installations
- Prisons
- Hotels
- Schools
- Convention centers
- Security checkpoints
Shipping Means
- By express (3-5days, most expensive)
- By air (5-7days, expensive)
- By sea (15-28days, cheapest)
MCD has been supplying quality products worldwide for over,40 countries, 10 years, with wide product line consists of 6 groups, includes:
- X-ray luggage scanner
- Walkthrough metal detector gate
- Food metal detector
- Underground metal detector
- Hand-held metal detector
- Under Vehicle search system
