High Resolution Airport Baggage Scanners For Security Equipment

  • High Resolution Airport Baggage Scanners For Security Equipment
  • High Resolution Airport Baggage Scanners For Security Equipment
  • High Resolution Airport Baggage Scanners For Security Equipment
Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-6550
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tunnel Size 650(W)*500(H)mm Conveyor Speed 0.22m/s
Conveyor Max Load 170kg Dose Per Inspection <1.4uGy/h
Resolution <0.0787mmMetal Wire Penetrate Resolution Dia 0.254mm
Penetration 34mm Steel Generate Direct Upward
Anode Voltage 100~160Kv Anode Power 0.4 To 1.2mA
High Light

security screening equipment

,

airport metal detector
Leave a Message
Product Description

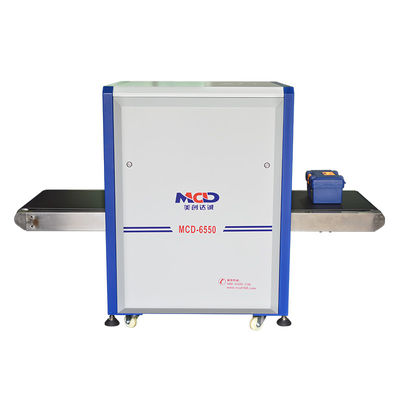

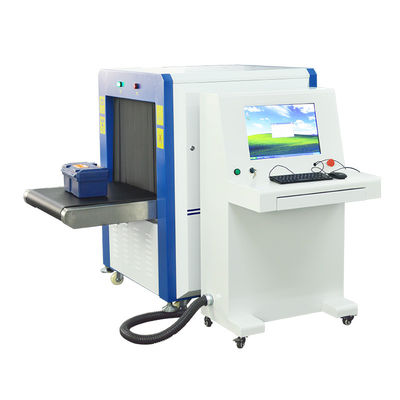

High Resolution Airport Baggage Scanners For Security Equipment







General Specification



  • Tunnel Size: 650(W)*500(H)mm
  • Conveyor Speed: 0.22m/s
  • Conveyor Max Load: 170kg
  • Dose per Inspection: <1.4uGy/h
  • Resolution: <0.0787mmMetal Wire
  • Spatial resolution Level:dia1.0mm , Vertical:dia1.0mm
  • Penetrate resolution:Dia 0.254mm
  • Penetration: 34mm Steel
  • Film Safety: Guarantee ISO1600 Film
  • X-ray Leakage: <0.05 uGy/h (at a distance of 5cm From external housing)



X-ray Generator



  • Generate direct: Upward
  • Generate angle: 80 degree
  • Anode Voltage: 100~160Kv
  • Anode power: 0.4 to 1.2mA
  • Cooling / Duty Cycle: Oil Cooling /100%



Image System





X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor:  High Resolution Color, LCD Accord, 17 inch
Detector: 2
Color display: full color
Image Processing: Edge enhancement, image strengthening,

image lightening,reducing  darkening, image returning, image retrieval
Image Grey Level: 4096
Image Max Resolution:  1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom:

1-9 Image regions, 2,4,8,16 Times Enlarge,

Whole screen continuous observation

Multi-energetic

distinguish objects:

 organic objects in orange,inorganic objects in blue, mixture in green
High-energy/low energy: switch from high energy to low energy



Installation Data

  • Operating Temperature/Humidity: 0℃～45℃/20%-95%(non-condensing)
  • Storage Temperature/Humidity: -26℃～60℃/20%-95%(non-condensing)
  • Operation Power:220AVC/(±10)50Hz±3Hz
  • Power Consumption:1.0KW(Max)
  • Noise: ＜65 dB





Features



X-ray penetrate inspection, the object can be found within the metal structure, can display the naked eye

can not see where the liquid is also very obvious object display.Used in the factory testing of security

products and business units such as: electronic factories, shoe factories, toy factories, courts, railway

stations, and event bag, line security management package.





Application



  • Airports and Seaports
  • Government Buildings
  • Embassies
  • Police Station
  • Courthouses
  • Prisons and Jails
  • Military Base
  • Hospitals
  • Banks
  • Financial Institutions
  • College and Schools
  • Hotels and Casinos
  • Power Plants
  • Research Sites
  • Sport Stadium
  • Public Transportation
  • Public Landmarks
  • Factories and Warehouses
  • Broadcast Studios
  • Museum

High Resolution Airport Baggage Scanners For Security Equipment 0High Resolution Airport Baggage Scanners For Security Equipment 1
