High Sensitive X Ray Baggage Scanner Machine For Security inspection

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-5030A
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Tunnel Size 500(W)*300(H)mm Conveyor Speed 0.22m/s
Conveyor Max Load 170kg Dose Per Inspection <2.9 UGy/h
Resolution <0.101mmMetal Wire Spatial Resolution Level Diaφ1.0mm , Vertical:diaφ1.0mm
Through Resolution φ0.202mm Penetration 10mm Steel
Film Safety Guarantee ISO1600 Film X-ray Leakage 0.05 UGy/h (at A Distance Of 5cmFrom External Housing)
High Light

airport baggage scanners

,

security screening equipment

Leave a Message
Product Description



X-rays through inspection X Ray Baggage Scanner For Security inspection



Product Parameters:



General Specification



Tunnel Size 500(W)*300(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 170kg
Dose per Inspection <2.9 uGy/h
Resolution <0.101mmMetal Wire
Spatial resolution Level diaφ1.0mm , Vertical:diaφ1.0mm
Through resolution φ0.202mm
Penetration 10mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage 0.05 uGy/h (at a distance of 5cmFrom external housing)



X-ray Generator
1.Generate direct: Upward
2.Generate angle: 80 degree
3.Anode Voltage: 80Kv
4.Anode power: 0.4 to 0.5mA
5.Cooling / Duty Cycle: Oil Cooling /100%



Image System

X-ray Sensor  L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Detector 1
Color display less than 4 color
Image Processing

Edge enhancement, image strengthening, Image lightening,

reducing  darkening, image returning, image retrieval.

Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zones & Zoom

1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen

 continuous observation



Installation Data

1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)

2.Storage Temperature/Humidity-26℃~60/20%-95%(non-condensing)

3.Operation Power:220AVC/(±10)50Hz±3Hz

4.Power Consumption:1.0KW(Max),0.3KW(working)

5.Noise: <55 dB





Feature and Application:

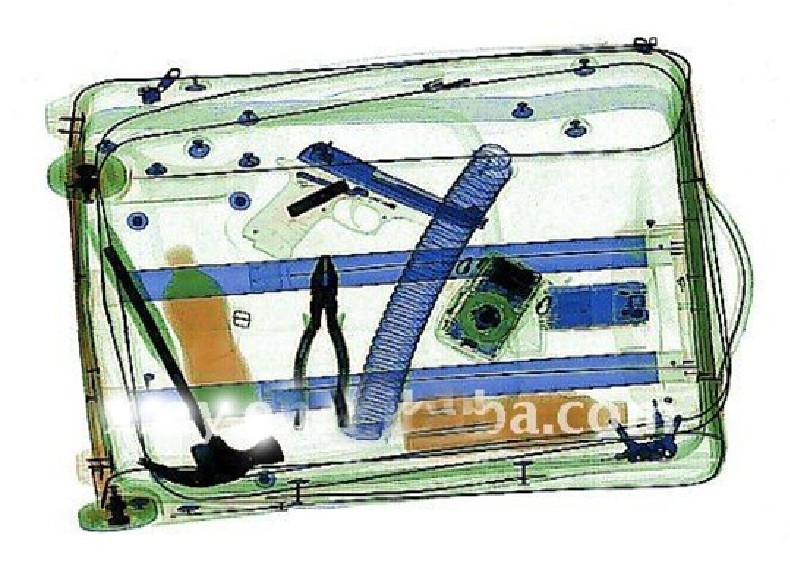

X-rays through inspection,Which show object interior metal structure by LCD screen.Applied

 to factory inspection products and institutions of the security. Such as electronic factory,

shoe factories, toy factories, court and station, as well as large activities handbag security.
