hold baggage in X-ray screening systems , hotel x ray baggage scanner

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-5030A
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Tunnel Size 500(W)*300(H)mm Conveyor Speed 0.22m/s
Conveyor Max Load 170kg Resolution <0.101mmMetal Wire
Generate Angle 80 Degree Operating Temperature/Humidity 0℃~45℃/20%-95%(non-condensing)
Operation Power 220AVC/(±10)50Hz±3Hz Anode Voltage 80Kv
High Light

airport baggage scanners


security screening equipment

Leave a Message
Product Description

hold baggage in X-ray screening systems , hotel x ray baggage scanner


Product Parameters:


General Specification

  • 1. Tunnel Size: 500(W)*300(H)mm
  • 2. Conveyor Speed: 0.22m/s
  • 3. Conveyor Max Load: 170kg
  • 4. Dose per Inspection: <2.9 uGy/h
  • 5. Resolution: <0.101mmMetal Wire
  • 6. Spatial resolution Level:diaφ1.0mm , Vertical:diaφ1.0mm
  • 7. Through resolution:φ0.202mm
  • 8. Penetration: 10mm Steel
  • 9. Film Safety: Guarantee ISO1600 Film
  • 10 X-ray Leakage: <0.05 uGy/h (at a distance of 5cmFrom external housing)

X-ray Generator

  • 1. Generate direct: Upward
  • 2. Generate angle: 80 degree
  • 3. Anode Voltage: 80Kv
  • 4. Anode power: 0.4 to 0.5mA
  • 5. Cooling / Duty Cycle: Oil Cooling /100%


Image System

1. X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep

2. Monitor: High Resolution Color, LCD Accord, 17 inch

3. Detector:1

4. Color display:less than 4 color

5. mage Processing: Edge enhancement, image strengthening,

    Image lightening, reducing darkening, image returning, image retrieval.

6. Image Grey Level: 4096

7. Image Max Resolution: 1024 * 1280 pixel

8. Image Processing: 24bit for processing real time

9. Image storage: Storage 60000 pictures in real time

10. Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge,

      Whole screen continuous observation

11. Multi-energetic distinguish objects: organic objects in orange,

      inorganic objects in blue,mixture in green


Installation Data

  • 1. Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
  • 2. Storage Temperature/Humidity: -20℃~60℃/20%-95%(non-condensing)
  • 3. Operation Power:220AVC/(±10)50Hz±3Hz
  • 4. Power Consumption:1.0KW(Max),0.3KW(working)
  • 5. Noise: <55 dB


Feature and Application:

X-rays through inspection,Which show object interior metal structure by LCD screen.

Applied to factory inspection products and institutions of the security. Such as electronic factory,

shoe factories, toy factories, court and station, as well as large activities handbag security.

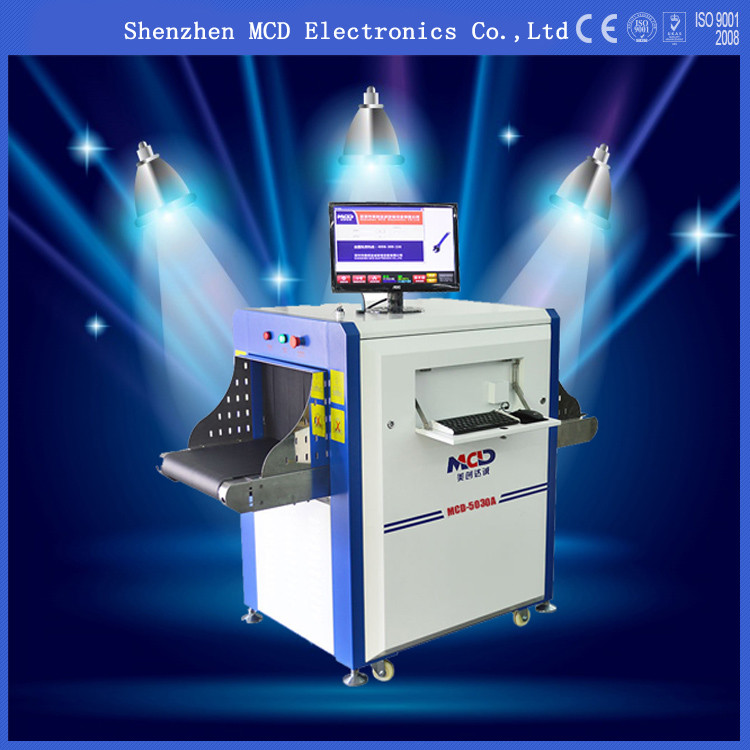

hold baggage in X-ray screening systems , hotel  x ray baggage scanner 0
