Large Size 800*650mm Airport Security Detector To Detect Weapons Bombs

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-8065
Minimum Order Quantity 1 set
Price Negotiable

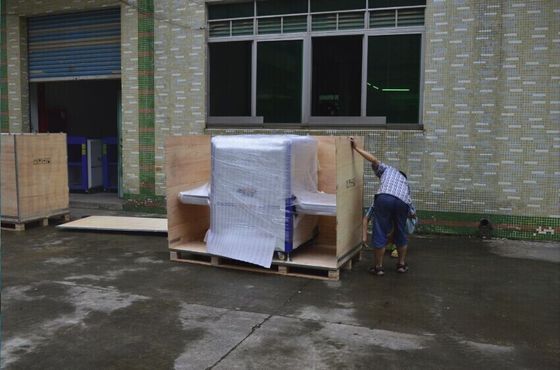

Packaging Details consideration of transport ,suggest customers use the wooden box
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 50 sets/ week
Product Details
Tunnel Size 850(W)*650(H)mm Conveyor Speed 0.22m/s
Conveyor Max Load 200kg Dose Per Inspection <1.6uGy/h
Resolution <0.0787mmMetal Wire Penetration 40mm Steel
Operation Power 220AVC/(±10)50Hz±3Hz Noise <58 DB
Operating Temperature 0℃~45℃ Image Max Resolution 1024 * 1280 Pixel
High Light

metal detector airport

,

airport security metal detectors

Leave a Message
Product Description



Large Size 800*650mm Airport Security Detector To Detect Weapons Bombs

Large Size 800*650mm Airport Security Detector To Detect Weapons Bombs 0





Product Parameters:



 General Specification

Tunnel Size 800(W)*650(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 200kg
Dose per Inspection <1.6uGy/h
Resolution <0.0787mmMetal Wire
Spatial resolution Level diaφ1.3mm , Vertical:diaφ1.0mm
Through resolution φ0.254mm
Penetration 40mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage 0.1 uGy/h (at a distance of 5cmFrom external housing)



 X-ray Generator

Generate direct Downward
Generate angle 80 degree
Anode Voltage 100~160Kv
Anode power 0.4 to 1.2mA
Cooling / Duty Cycle Oil Cooling /100%



 Image System

X-ray Sensor  L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch



Image Processing

Edge enhancement, image strengthening, Image lightening,

reducing  darkening, image returning, image retrieval.

Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24 bit for processing real time
Image storage Storage 60000 pictures in real time
Zones & Zoom

1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen

 continuous observation

Multi-energeti       distinguish objects

organic objects in orange,inorganic objects in blue,

mixture in green

High-energy

/low energy

 switch from high energy to low energy



 Installation Data

Operating Temperature 0℃~45℃
Operating Humidity 20%-95%(non-condensing)
Storage Temperature -26℃~60℃
Storage Humidity 20%-95%(non-condensing)
Operation Power 220AVC/(±10)50Hz±3Hz
Power Consumption 1.0KW(Max)
Noise <58 dB



Feature and Application:

X-ray penetrate inspection, the object can be found within the metal structure, can display the

naked eye can not see where the liquid is also very obvious object display.Used in the factory

testing of security products and business units such as: electronic factories, shoe factories,

toy factories, courts, railway stations, and event bag, line security management package



Large Size 800*650mm Airport Security Detector To Detect Weapons Bombs 1
