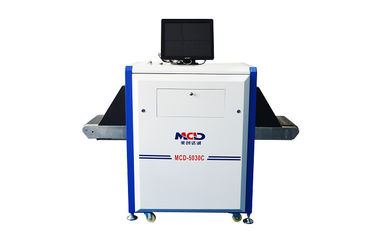

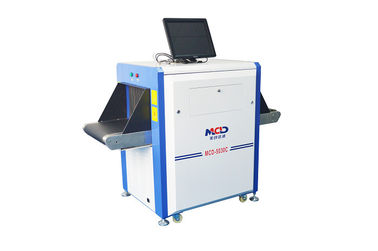

Luggage Checkpoints X Ray Inspection Machine / X Ray Security Detector High Performance
| Place of Origin | China |
|---|---|
| Brand Name | MCD |
| Certification | ISO , CE |
| Model Number | MCD-5030C |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Strong Wooden Case |
| Delivery Time | Normally within 5 working days |
| Payment Terms | T/T , Western Union , L/C |
| Supply Ability | 300 set/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tunnel Size | 500(W)*300(H)mm | Conveyor Speed | 0.22m/s |
|---|---|---|---|
| Conveyor Max Load | 170kg | Dose Per Inspection | <2.9uGy/h |
| Resolution | <0.101mmMetal Wire | Color Display | Full Color |
| Penetration | 34mm Steel | Film Safety | Guarantee ISO1600 Film |
| X-ray Leakage | <0.05 UGy/h (at A Distance Of 5cm From External Housing) | Anode Voltage | 80Kv |
| High Light | security x ray machine,airport x ray machines |
||
Product Description
Luggage Checkpoints X Ray Inspection Machine / X Ray Security Detector High Performance
General Specification:
- Tunnel Size: 500(W)*300(H)mm
- Conveyor Speed: 0.22m/s
- Conveyor Max Load: 170kg
- Dose per Inspection: <2.9 uGy/h
- Resolution: <0.101mmMetal Wire
- Spatial resolution Level:diaφ1.0mm , Vertical:diaφ1.0mm
- Through resolution:φ0.202mm
- Penetration: 34mm Steel
- Film Safety: Guarantee ISO1600 Film
- X-ray Leakage: <0.05 uGy/h (at a distance of 5cmFrom external housing)
X-ray Generator:
- Generate direct: Upward
- Generate angle: 80 degree
- Anode Voltage: 80Kv
- Anode power: 0.4 to 0.5mA
- Cooling / Duty Cycle: Oil Cooling /100%
Image System:
- X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
- Monitor: High Resolution Color, LCD Accord, 17 inch
- Detector:2
- Color display:full color
- Image Processing: Edge enhancement, image strengthening,
- Image lightening, reducing darkening, image returning, image retrieval.
- Image Grey Level: 4096
- Image Max Resolution: 1024 * 1280 pixel
- Image Processing: 24bit for processing real time
- Image storage: Storage 60000 pictures in real time
- Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge,
- Whole screen continuous observation
- Multi-energetic distinguish objects: organic objects in orange,inorganic objects in blue,
- mixture in green
Installation Data:
- Operating Temperature/Humidity: 0℃～45℃/20%-95%(non-condensing)
- Storage Temperature/Humidity: -20℃～60℃/20%-95%(non-condensing)
- Operation Power:220AVC/(±10)50Hz±3Hz
- Power Consumption:1.0KW(Max),0.3KW(working)
- Noise: ＜55 dB
Feature and Application:
X-rays through inspection,Which show object interior metal structure by LCD screen.
Applied to factory inspection products and institutions of the security. Such as electronic factory,
shoe factories, toy factories, court and station, as well as large activities handbag security.
