Middle X-Ray Inspection Machine With "Emergency Stop" Button

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-6550
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month
Product Details
Tunnel Size 650(W)*500(H)mm Conveyor Speed 0.22m/s
Resolution <0.0787mmMetal Wire Penetrate Resolution Dia 0.254mm
Penetration 34mm Steel Cooling / Duty Cycle Oil Cooling /100%
Power Consumption 1.0KW(Max) Anode Voltage 100~160Kv
X-ray Sensor L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
High Light

security x ray machine

,

airport x ray machines

Leave a Message
Product Description

 Middle X-Ray Inspection Machine  With "Emergency Stop" Button



Product Parameters:



General Specification

Tunnel Size: 650(W)*500(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170kg
Dose per Inspection: <1.4uGy/h
Resolution: <0.0787mmMetal Wire
Spatial resolution Level: dia1.0mm , Vertical:dia1.0mm
Penetrate resolution: Dia 0.254mm
Penetration: 34mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <0.05 uGy/h (at a distance of 5cm From external housing)



X-ray Generator

Generate direct: Upward
Generate angle: 80 degree
Anode Voltage: 100~160Kv
Anode power: 0.4 to 1.2mA
Cooling / Duty Cycle: Oil Cooling /100%




Image System

X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Detector: 2
Color display: full color
Image Processing:

Edge enhancement, image strengthening,image lightening,

reducing  darkening, image returning, image retrieval

Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge,

  Whole screen continuous observation

Multi-energetic distinguish objects:

organic objects in orange, inorganic objects in blue,mixture in green

High-energy/low energy: switch from high energy to low energy




Installation Data

Operating Temperature: 0℃~45℃
Operating  Humidity: 20%-95%(non-condensing)
Storage Temperature: -26℃~60℃/
Storage Humidity: 20%-95%(non-condensing)
Operation Power: 220AVC/(±10)50Hz±3Hz
Power Consumption: 1.0KW(Max)
Noise: <58 dB



Feature and Application:

X-ray penetrate inspection, the object can be found within the metal structure, can display the naked eye

can not see where the liquid is also very obvious object display.Used in the factory testing of security

products and business units such as: electronic factories, shoe factories, toy factories, courts, railway

stations, and event bag, line security management package

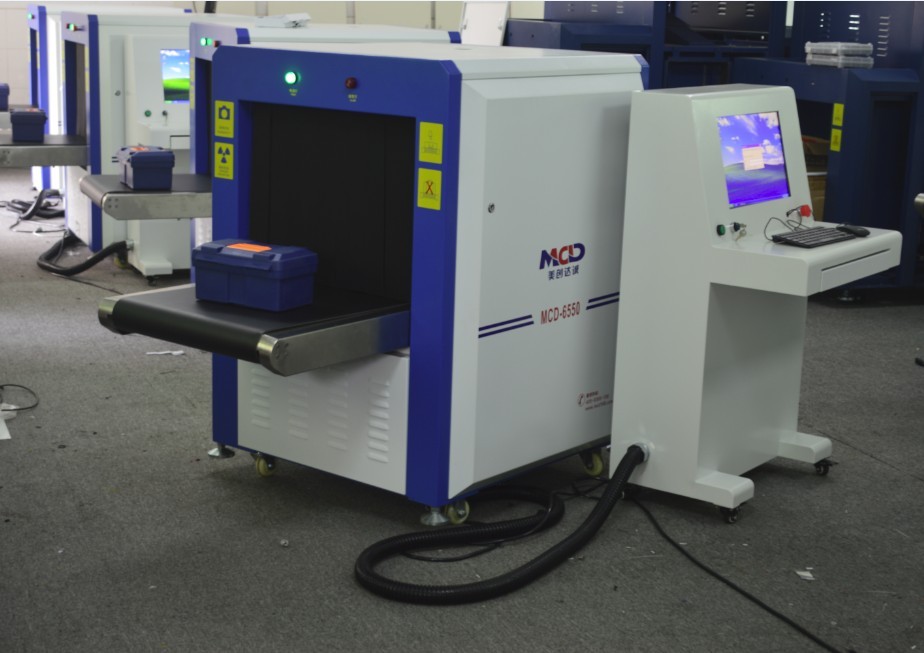

Middle X-Ray Inspection Machine  With "Emergency Stop" Button 0
