Professional Frozen Food Metal Detector With Memory Collecting

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-F500QF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 100 set/month
Product Details
Detecting Method The Electromagnetic Wave Detection, The New Analog Circuits And Digital Detecting Width 45-80 Cm, Customized
Detecting Height 10-50cm Customized Sensitivity Adjust 0-10 Level
Conveyor Belt Speed 25m/min Power Supply AC100-265V , 50-60Hz
Display Way 7 Inch Digital Circuit Full-color Touch Pannel LCD Display Alarm Method The Buzzer Alarm, The Motor Automatically Stop
Power Rate 90W Detection Sensitivity 0.6mm-3.0mm Iron Ball, 1.5mm-5.0mm Stainless Steel
High Light

belt conveyor metal detectors

,

metal detector for conveyor belt

Leave a Message
Product Description

Professional Frozen Food Metal Detector With Memory Collecting



Description:

MCD-F500QF is new arrival food metal detector.Not only it has MCD-F500QD and MCD-F500QE all

advantages.like touch screen ,10 level adjustable sensitivity and memory 10 kinds of products etc.
But also it has more  higher reliablity and stablity on check products with water and salt.


Quick detail:


 Detection method:

 the electromagnetic wave detection, the new analog circuits
 and digital circuits  combined

Display way : 7 inch digital circuit full-color touch pannel LCD display

Detection width :

45-80 cm, Customized

Detection height:

10-50cm Customized

Sensitivity adjustable:

 0-9 level

Detection sensitivity:

0.6mm-3.0mm iron ball, 1.5mm-5.0mm Stainless steel

Alarm mode:

The buzzer alarm, the motor automatically stop

Transfer speed:

25 meter / mins

Power:

100-265VAC, 50-60Hz

Size:

 (150-170)(L)*(80-90)(W)*(85-120)(H)cm





Metal Detector Parameters :

Model

Detecting height(cm)

Detecting width(cm)

    Sensitivity(mm)

Belt Size(cm)
    Fe   SUS Length Width

MCD-F500QF-09

6 30 Φ0.6 Φ1.2 258 28
MCD-F500QF-12 9 30 Φ0.7 Φ1.5 258 28
MCD-F500QF-15 12 40 Φ0.8 Φ1.5-Φ2.0 258 38
MCD-F500QF-20 17 40 Φ1.0-Φ1.25 Φ2.0-Φ2.5 258 38
MCD-F500QF-25 22 50 Φ1.5-Φ2.0 Φ3.0-Φ4.0 330 48
MCD-F500QF-30 27 50 Φ2.5-Φ3.0 Φ5.0-Φ6.0 330 48
MCD-F500QF-35 32 60 Φ3.0-Φ3.5 Φ6.0-Φ7.0 330 58
MCD-F500QF-40 37 60 Φ3.5-Φ4.0 Φ7.0-Φ8.0 330 58
MCD-F500QF-45 42 70 Φ4.0-Φ4.5 Φ8.0-Φ9.0 330 68
MCD-F500QF-50 47 70 Φ4.5-Φ5.0 Φ9.0-Φ10.0 390 68
MCD-F500QF-55 52 80 Φ5.0-Φ5.5 Φ10.0-Φ11.0 390 78
MCD-F500QF-60 57 80 Φ5.5-Φ6.0 Φ11.0-Φ12.0 390 78
MCD-F500QF-65 62 90 Φ6.0-Φ6.5 Φ12.0-Φ13.0 390 88
MCD-F500QF-70 67 90 Φ6.5-Φ7.0 Φ13.0-Φ14.0 390 88
MCD-F500QF-75 72 100 Φ7.0-Φ7.5 Φ14.0-Φ15.0 450 98
MCD-F500QF-80 77 100 Φ7.5-Φ8.0 Φ15.0-Φ16.0 450 98
MCD-F500QF-85 82 110 Φ8.0-Φ8.5 Φ16.0-Φ17.0 450 108
MCD-F500QF-90 87 110 Φ8.5-Φ9.0 Φ17.0-Φ18.0 450 108
MCD-F500QF-95 92 120 Φ9.0-Φ9.5 Φ18.0-Φ19.0 450 118
MCD-F500QF-100 97 120 Φ9.5-Φ10.0 Φ19.0-Φ20.0 450 118

Remarks: it can't detecting aluminum foil and oxidizing agent , And other additional features should be customized,  such as: infrared control, automatic rejecting device, foot switch, alarm indicator, control device, etc





Features and Application:

this machine is widely used in the detection of meat , mushrooms, candy, drinks ,food , fruits and,vegetables,

dairy products , aquatic products , health products , additives and flavorings and other food-ferrousmetals

and non-ferrous metal impurities . Besides it can also be used for the detection of metallic impurities in

chemicals , rubber , plastics , textiles , leather , chemical fiber , toys as well as for the detection of metallic

impurities in pharmaceuticals , health products , biological products , cosmetics , gifts , packaging , papers,

and so on.

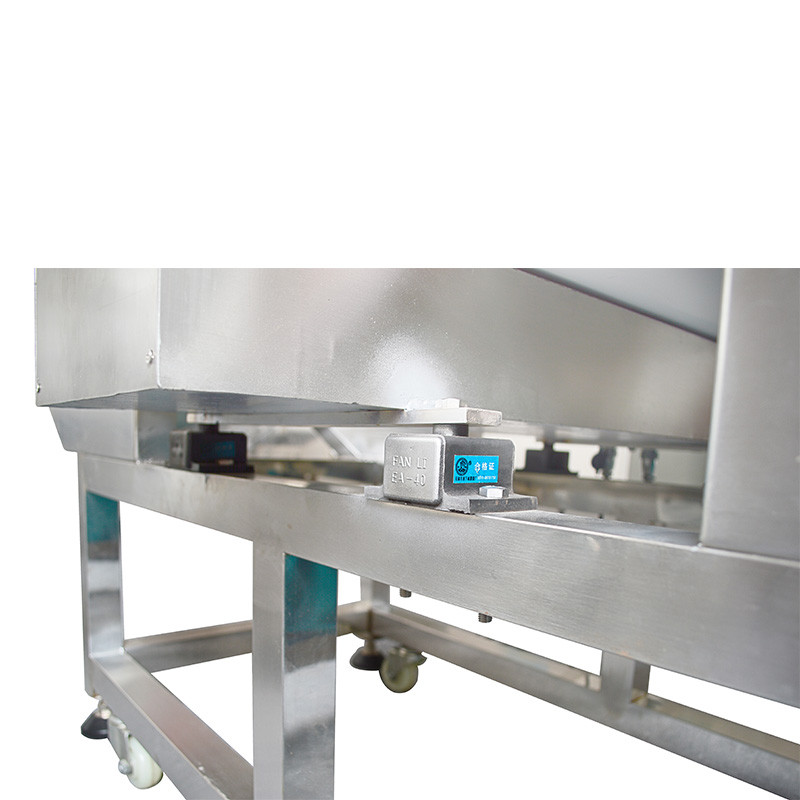

Professional Frozen Food Metal Detector With Memory Collecting 0

Professional Frozen Food Metal Detector With Memory Collecting 1

MCD-F500QF food metal detector.pdf
