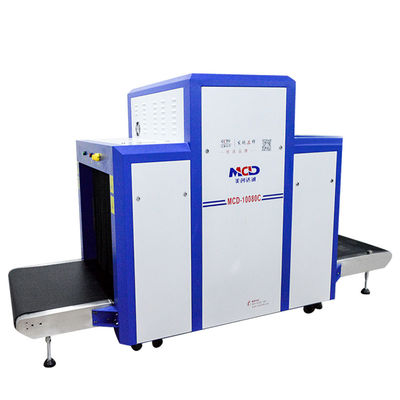

Reliable Dual View X Ray Baggage Scanner 34mm Steel Penetration For Public Security

  • Reliable Dual View X Ray Baggage Scanner 34mm Steel Penetration For Public Security
Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-100100
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 300 set/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

security screening equipment

,

airport metal detector
Leave a Message
Product Description

Professional X Ray Baggage Scanner Gun Metal Detector With Conveyor Belt

Product Introduction :


Professional X Ray Baggage Scanner  X-Ray top shine detect ,
1. For Explosives, Drugs, Threats & Duty Fraud
2. Ideal solution for screening baggage
3. Baggage scanner with x-ray tecnique

Product Features:


  •   General Specification
  •   Tunnel Size: 1000(W)*1000(H)mm
  •   Conveyor Speed.......0.22m/s
  •   Conveyor Max Load200kg
  •   Dose per Inspection< 1.6μGy/h
  •   Resolution< 0.0787mm Copper Wire
  •   Spatial resolutionLevel: dia1.3mm, Vertical: dia1.0mm
  •   Penetrate resolution Dia 0.511mm
  •   Penetration 34mm Steel
  •   Film Safety:Guarantee ISO1600 Film
  •   X-ray Leakage<0.1μGy/h (at a distance of 5cm From external housing)



X-ray Generator

Generate direct: Bottom to up
Generate anger: 80 degree
Anode Voltage100~160Kv
Anode power0.4 to 1.2mA
Cooling / Duty CycleOil Cooling /100%

Installation Data

  Operation temperature/Humidity 0-45/20%-95%(non-condensing)
  Storage Temperature/Humidity -20-60/20%-95%(non-condensing)
  Operation Power220VAC(±10%)50±3Hz
  Power Consumption1.0 KW (max)
  Noise: <58db

Specification :


model MCD-100100
Power wastage 1.0KW(Max)
Noise ＜58 dB
Operating Temperature 0℃～45℃
 Storage Temperature -20℃～60℃
