School train station airport X Ray Baggage Inspection Scanner 34mm Steel Penetration
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Tunnel Size||650(W)*500(H)mm||Conveyor Speed||0.22m/s|
|Conveyor Max Load||170kg||Dose Per Inspection||<1.4uGy/h|
|Resolution||<0.0787mmMetal Wire||Penetration||34mm Steel|
|Through Resolution||φ0.254mm||Color Display||Full Color|
|Spatial Resolution Level||Diaφ1.0mm , Vertical:diaφ1.0mm||Application||Security Check|
security screening equipment,
airport metal detector

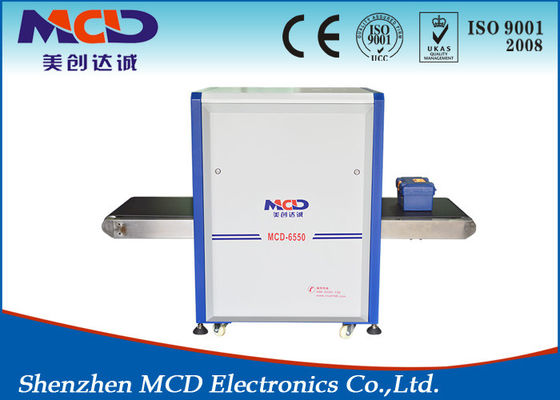

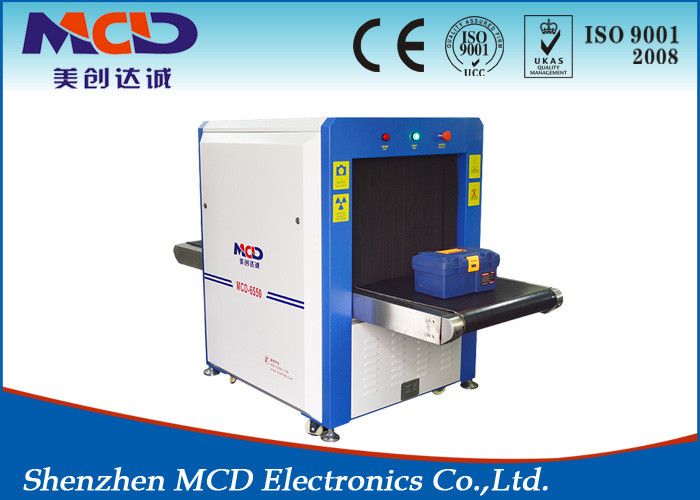

MCD -6550 School X Ray Baggage Inspection Scanner 34mm Steel Penetration
- Sound and light alarms
- Network Interface: Can connect local area networks, multiple terminals can check luggage’s at the same time
- Safer-ray: Ray fired automatic control, to avoid misusing launching.
- One shutdown control button: You just need to rotate the key and the equipment will automatic power off safely, no need for complex multi-step operation, more convenient and simpler.
- Eagle Eye: Current region can be reviewed convent in enlarged status.
- Fault self-diagnosis: Automatically determine the failure and give prompt information, easy to maintain.
|Conveyor Max Load||170kg|
|Dose per Inspection||<1.4uGy/h|
|Spatial resolution Level||diaφ1.0mm , Vertical:diaφ1.0mm|
|Film Safety||Guarantee ISO1600 Film|
|X-ray Leakage||0.05 uGy/h (at a distance of 5cmFrom external housing)|
|Generate angle||80 degree|
|Anode power||0.4 to 1.2mA|
|Cooling / Duty Cycle||Oil Cooling /100%|
|X-ray Sensor||L-Shaped Photodiode Array (monoenergetic) , 12bit Deep|
|Monitor||High Resolution Color, LCD Accord, 17 inch|
|Color display||full color|
Edge enhancement, image strengthening, Image lightening,
reducing darkening, image returning, image retrieval.
|Image Grey Level||4096|
|Image Max Resolution||1024 * 1280 pixel|
|Image Processing||24 bit for processing real time|
|Image storage||Storage 60000 pictures in real time|
|Zones & Zoom||
1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen
|Multi-energeti distinguish objects||
organic objects in orange,inorganic objects in blue,
mixture in green
switch from high energy to low energy
Feature and Application:
X-ray penetrate inspection, the object can be found within the metal structure, can display
the naked eye can not see where the liquid is also very obvious object display.Used in the
factory testing of security products and business units such as: electronic factories, shoe
factories,toy factories, courts, railway stations, and event bag, line security management
