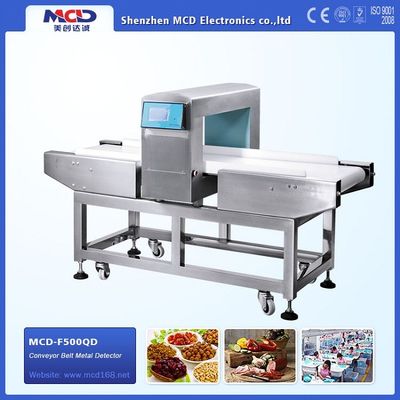

Touch Screen Intelligent Food Metal Detector For Checking Needles In Food / Toy / Cloth

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-F500QD
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Strong Wooden Case
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 100 set/month
Product Details
Technology DSP Detecting Width 38cm
Detecting Height 10cm Sensitivity 10 Level
Belt Speed 25m/min Power AC220V
Output 90W Size 1500*800*880mm
Net Weight 180KG Gross Weight 200KG
High Light

food industry metal detectors


food grade metal detector

Leave a Message
Product Description

Touch Screen Intelligent Food Metal Detector For Checking Needles In Food/Toy/Cloth


We are offering Food Metal Detector.
Designed For Control Of Packaged & Unpackaged Goods.
Detection Theory : Balance Coil and Electromagnetic Induction.
According to HACCP& FDA Standards.
Designed to Detect : All ferrous, all non-ferrous & SS particles.










Product Description



Technical Specs:


Detecting method Magnetic Induction
Detecting area 400mm(W)×100mm-500mm(H)
Detecting ability Fe 0.8mm-3.0mm , SUS304 1.5mm-5.0mm
Detecting adjustment 10 level adjustment
Alarm  Buzzer and the belt stops
Belt Speed 40m /min
Power Supply 220V, 50Hz, Single phase
Rated Output (appr)90W
Dimension 1520(L) x 780(W) x 1000(H)mm
Weight (approx.) 200kg






Feature and Application:

1.Dual-loop circuit design, it can detect ferrous and non-ferrous and other metal objects,

the sensitivity can be adjusted separately, with memory function can be stored 10 kinds of

test material.

2.Detector with audible and visual alarm, and automatically exclude, stop, rewind functions,

 user-friendly menu, easy to operate touch screen. Machine made of stainless steel,anti-corrosion, no rust, easy to clean up.

3.Conveyor and pallet assembly used in the U.S. "FDA" standards of white non-toxic materials.

4.Detection accuracy over the corresponding provisions of HACCP system Detect indicators.

5.Can use with production line.

6.It is mainly used for detecting the metal chips inside the nuts,rice,tea and wood processing industry etc.
