X-ray Airport Security Detector , Bomb Detecting Equipment With Alarms

Place of Origin China
Brand Name MCD
Certification ISO , CE
Model Number MCD-6550
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details wooden box
Delivery Time Normally within 5 working days
Payment Terms T/T , Western Union , L/C
Supply Ability 1000 Set/Sets / Week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
High Light

airport metal detector


metal detector airport

Leave a Message
Product Description

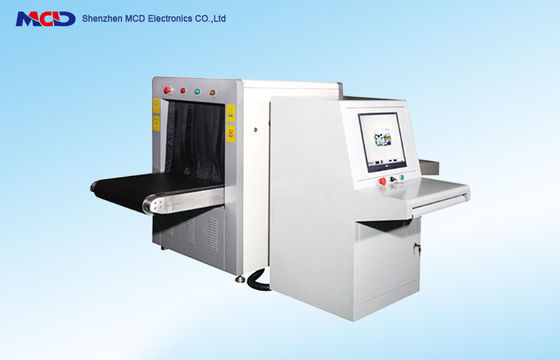

Airport Security X-ray Baggage Scanner Detector Machine  MCD-6550

Feature :

 Sound and light alarms

Network Interface: Can connect local area networks, multiple terminals can check luggage’s at the same time

Safer-ray: Ray fired automatic control, to avoid misusing launching.

Simple mouse control: can directly control the equipment without the keyboard and the working table.

One shutdown control button: You just need to rotate the key and the equipment will automatic power off safely, no need for complex multi-step operation, more convenient and simpler.

Eagle Eye: Current region can be reviewed conviently in enlarged status.

Fault self-diagnosis: Automatically determine the failure and give prompt information, easy to maintain.




Tunnel Size: 650 (wide) × 500 (high) mm

Conveyor speed: 0.2 m / s.

Conveyor Max load: 50kg

Single inspection dosage: <1.5μGy

Wire Resolution: 0.101mm metal line

Steel Penetration: 34mm armor plate

Film safety: For ISO1600

Maximum leakage radiation: <0.05µGy/h


X-ray generator:


Orientation:Vertically Upward

Tube current: 0.4 ~ 1.2mA (adjustable)

Anode voltage: 100 ~ 160 kV (adjustable)

Angle: 60 °

Generayor Cooling/working periods; Sealed oil with forced air/100%


Operation environment:


Storage temperature:-20 °C to 60 °C

Operating Temperature: 0 °C to 45 °C

Relative Humidity: 20 to 95% non-condensing

System power: 220VAC (± 10%) 50 ± 3Hz

Power wastage: 1.0KW (Maximum)

Noise : <65DB
