Adjustable 6 Zone 18 zone Walkthrough Metal Detector Door Frame

Adjustable 6 Zone 18 Zone Walkthrough Metal Detector Door Frame

High Quality Latest LED Light/Sound Walk Through Security Alarm Door Gate Connect With Gate Checker MCD600

Door Frame Metal Detector Introduction:

MCD walk through metal detector is a CE approved concealed weapons detector. This walk-through metal detector which uses advanced magnetic technology to accurately pinpoint the location, size, and number of concealed weapons, such as knives and guns. Personal artifacts such as coins, keys or belt buckles will not set off the alarm. The walk-through metal detectors a true multi-zone metal detector with new advanced features. It offers superior performance for demanding high security applications.

Product Parameters:

• Alarm way: Audio Alert,and LED Location lamp work at same time .
• Detection Zone: 6 zone or 18 zone for option

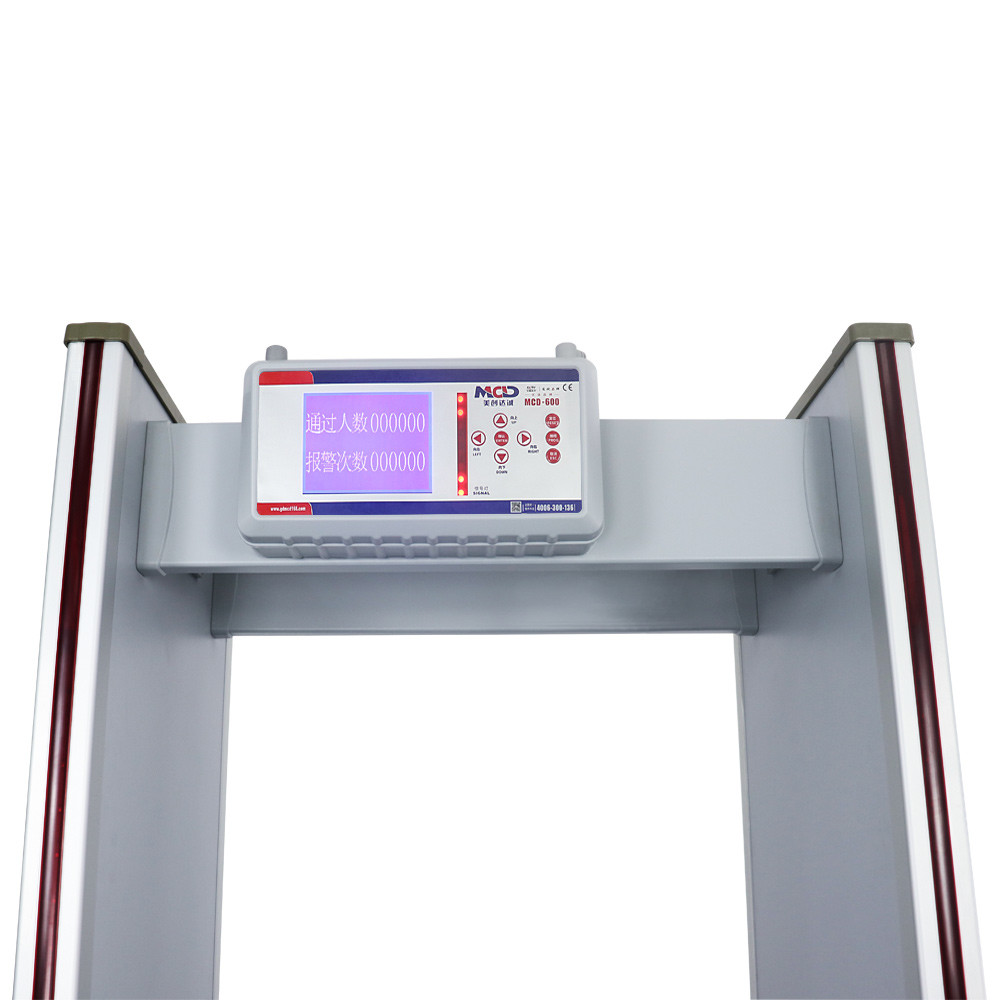

• Display ways: Large Screen of LCD display with LED
• Calibration / Operation: Automatic
• Detection Rate: all types of metal 100% Ferrous, Non Ferrous & Alloy
• Self Diagnosis: Automatic fault diagnosis system with error code
• Detection Method: Electro-magnetic field
• Sensitivity: 0-255 adjustable
• Password: built-in password protection
• Detection Speed:>60 detection per minute
• The main body with waterproof function.
• Tunnel Size: 200(L)*70(W)*55.5(H)cm
• Dimension: 220(L)*84(W)*67H)cm
• Power:220V,(±10)50Hz
• Net Weight: 55kg/set
• Gross Weight: 71kg/set
• Package Size: Main Body: 230*72*25cm(2 piece /carton)
                         Host Machine:78*47*28cm(1 piece/carton)

Product Functions:

• Improved digital and analog circuit designed to insure the performance is more stable and reliable
• Using high quality alloy and special materials, it has waterproof, fireproof and shockproof function
• With LED in the front of door for displaying the place of metal detected
• Sound and light alarm at the same time with adjustable sound volume
• Sensitivity of every zone can be adjusted independently
• With Intelligent traffic system and alarm counter
• Password-protected,just allowing the professional to operate
• Improved loop to reduce interference and eliminate blind spots
• Based on the operating system of digital information processing technology
• Adjustable digital frequencies to enable multiple security doors work at the same time
