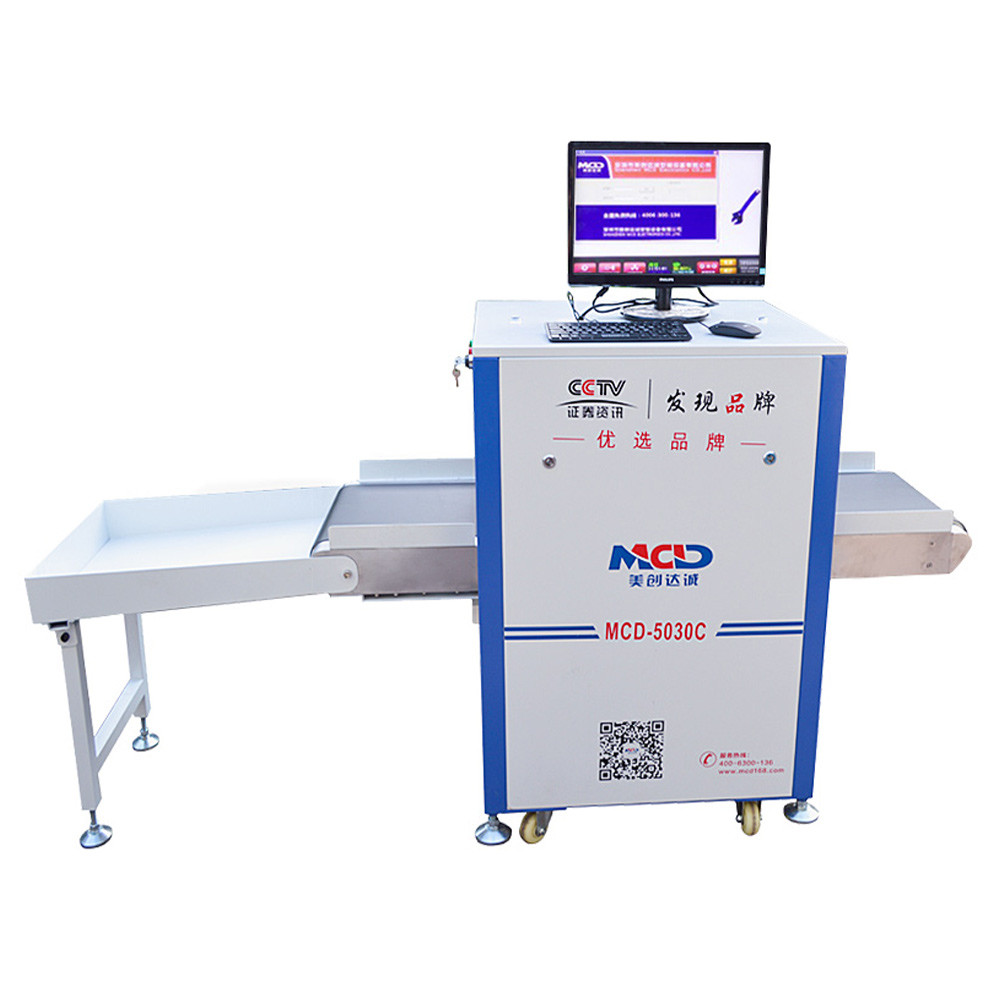

Popular Collapsible X Ray Security Screening Equipment For Hotel Cargo MCD-5030C
| Place of Origin | China |
|---|---|
| Brand Name | MCD |
| Certification | CE. EVN , ISO |
| Model Number | 5030C |
| Minimum Order Quantity | 1set |
| Price | Negotiable |
| Packaging Details | wooden box |
| Delivery Time | 5-10working days |
| Supply Ability | 50sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Certification | CE. EVN , ISO | Detecting Method | X-ray Bollom-illuminated |
|---|---|---|---|
| Model | 5030C | Brand | MCD |
| Conveyor Max Load | 120kg | Generate Direct | Upward |
| Highlight | security screening equipment,airport metal detector |
||
Product Description
Popular Collapsible X Ray Security Screening Equipment For Hotel Cargo MCD-5030C
Model Number:
MCD-5030c
Detecting method:
x-ray bollom-illuminated
Tunnel size:
500w*300H mm
Conveyor speed:
0.22m/s adjustable speed
Conveyor max load:
120kg
Single inspection dosage:
<1.5uGy
System power:
220AVC/50Hz
Power wastage:
1.0kw(max)
Warranty:
1 year
Generate Direct:
Upward
Anode Voltage:
80Kv-160kv
Packaging & Delivery
Selling Units:
Single item
Single package size:
180X94X140 cm
Single gross weight:
328.0 kg
Package Type:
strong wooden packaging
Lead Time :
|
Quantity(Set) |
1 - 1 |
2 - 10 |
11 - 30 |
>30 |
|
Est. Time(days) |
7 |
25 |
45 |
To be negotiated |
|
General Specification |
|
|
Tunnel size |
500 (W) * 300 (H) mm |
|
Rated power |
400W |
|
Rated load |
170kg (evenly distributed) |
|
Conveyor height |
76CM |
|
Transmission mode |
motor plus track belt |
|
Conveyor thickness |
2.0mm |
|
Transport speed |
standard 0.22M/S, adjustable speed |
|
Radiation direction |
bottom illumination |
|
Penetration |
34-38mm thick |
|
Penetration resolution |
34-40AWGΦ0.160mm |
|
Line resolution |
resolution 40AWGΦ0.0787mm>44SWG singlesolid core copper wire |
|
Tube voltage / tube current |
140-160KV/0.3mA |
|
Leakage rate |
<1.0μGy/h from the outer surface of the casing at 5CM |
|
Single dose |
radiation dose <1.5uGy |
|
Net weight |
250Kg |
|
Product volume |
168*83*122CM |
|
Ray beam divergence angle |
80 degrees |
|
Equipment noise level |
<55db |
|
Pass rate |
720 / h ~ 1500 / h |
|
Leakage current |
<0.5mA |
|
Cooling |
Sealed circulating oil cooled, 100 |
|
Work cycle |
full cycle, need to be cooled |
|
Rated voltage |
AC 220V 50HZ (±10%) |
|
Film Safety |
ISO1600 Film Safety |
|
Working temperature / humidity |
-10 ° C ~ 45 ° C / 20% -95% (non-condensing) |
|
Storage temperature / humidity |
-20 ° C ~ 60 ° C / 20% -95% (non-condensing) |
|
Image processing system |
||||
|
1. L-shaped photodiode array detector with 16bit accuracy |
