Full Color Display X Ray Inspection Machine With Double Detector

Place of Origin: China
Brand Name: MCD
Certification: ISO , CE
Model Number: MCD-5030C
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Strong Wooden Case
Delivery Time: Normally within 5 working days
Payment Terms: T/T , Western Union , L/C
Supply Ability: 300 set/month
Product Details
Penetration:: 34mm Steel Through Resolution:: φ0.202mm
Conveyor Max Load:: 170kg Conveyor Speed:: 0.22m/s
Tunnel Size:: 500(W)*300(H)mm Color Display:: Full Color
Image Max Resolution:: 1024 * 1280 Pixel Noise:: <55 DB
Anode Voltage:: 80Kv Anode Power:: 0.4 To 0.5mA
High Light:

security x ray machine

,

airport x ray machines

Leave a Message
Product Description

Full Color Display X Ray Inspection Machine With Double Detector







General Specification

Tunnel Size: 500(W)*300(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170kg
Dose per Inspection: <2.9 uGy/h
Resolution: <0.101mmMetal Wire
Spatial resolution: Level:diaφ1.0mm , Vertical:diaφ1.0mm
Through resolution: φ0.202mm
Penetration: 34mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <0.05 uGy/h (at a distance of 5cmFrom external housing)



X-ray Generator
1. Generate direct: Upward
2. Generate angle: 80 degree
3. Anode Voltage: 80Kv
4. Anode power: 0.4 to 0.5mA
5. Cooling / Duty Cycle: Oil Cooling /100%


Image System

X-ray Sensor:  L-Shaped Photodiode Array (monoenergetic) ,12bit Deep
Monitor: Resolution Color, LCD Accord, 17 inch
Color display: full color
Image Processing: Edge enhancement, image strengthening, Image lightening, reducing darkening, image returning, image retrieval
Detector: 2
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing:  24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects: organic objects in orange,inorganic objects in blue, mixture in green



Installation Data
1. Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
2. Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
3. Operation Power:220AVC/(±10)50Hz±3Hz
4. Power Consumption:1.0KW(Max),0.3KW(working)
5. Noise: <55 dB


Feature and Application:
X-rays through inspection,Which show object interior metal structure by LCD screen.Applied to factory inspection products and institutions of the security.Such as electronic factory, shoe factories,toy factories,

court and station,as well as large activities handbag security.

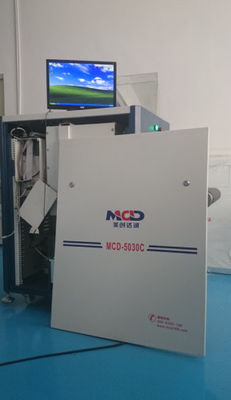

Full Color Display X Ray Inspection Machine With Double Detector 0
