Small Airport Baggage Scanner 80KV Anode Voltage MCD-5030A For Security

China Small Airport Baggage Scanner 80KV Anode Voltage MCD-5030A For Security supplier
Small Airport Baggage Scanner 80KV Anode Voltage MCD-5030A For Security supplier Small Airport Baggage Scanner 80KV Anode Voltage MCD-5030A For Security supplier

Large Image :  Small Airport Baggage Scanner 80KV Anode Voltage MCD-5030A For Security

Product Details:

Place of Origin: China
Brand Name: MCD
Certification: ISO , CE
Model Number: MCD-5030A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Strong Wooden Case
Delivery Time: Normally within 5 working days
Payment Terms: T/T , Western Union , L/C
Supply Ability: 300 set/month
Contact Now
Detailed Product Description
Tunnel Size:: 500(W)*300(H)mm Conveyor Speed:: 0.22m/s
Dose Per Inspection:: <2.9 UGy/h Anode Power:: 0.4 To 0.5mA
Noise:: <55 DB Anode Voltage:: 80Kv

Small Airport Baggage Scanner 80KV Anode Voltage MCD-5030A For Security



General Specification:
1.Tunnel Size: 500(W)*300(H)mm
2.Conveyor Speed: 0.22m/s
3.Conveyor Max Load: 170kg
4.Dose per Inspection: <2.9 uGy/h
5.Resolution: <0.101mmMetal Wire

6.Spatial resolution Level:diaφ1.0mm , Vertical:diaφ1.0mm

7.Through resolution:φ0.202mm



X-ray Generator:
1.Generate direct: Upward
2.Generate angle: 80 degree
3.Anode Voltage: 80Kv
4.Anode power: 0.4 to 0.5mA
5.Cooling / Duty Cycle: Oil Cooling /100%

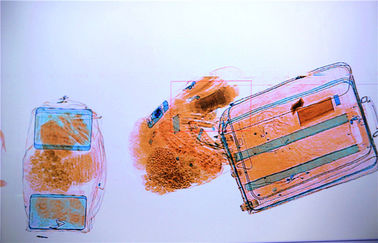

Image System:
1.X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
2.Monitor: High Resolution Color, LCD Accord, 17 inch

3.Detector:1

4.Color display:less than 4 color

5.Image Processing: Edge enhancement, image strengthening,

Image lightening, reducing darkening, image returning, image retrieval.
6.Image Grey Level: 4096
7.Image Max Resolution: 1024 * 1280 pixel
8.Image Processing: 24bit for processing real time



Installation Data:

1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)

2.Storage Temperature/Humidity: -26℃~60/20%-95%(non-condensing)

3.Operation Power:220AVC/(±10)50Hz±3Hz

4.Power Consumption:1.0KW(Max),0.3KW(working)

5.Noise: <55 dB
