Professional X- Ray Airport Baggage Scanner , Mini X-Ray Scanner for factory security

China Professional X- Ray Airport Baggage Scanner , Mini X-Ray Scanner for factory security supplier

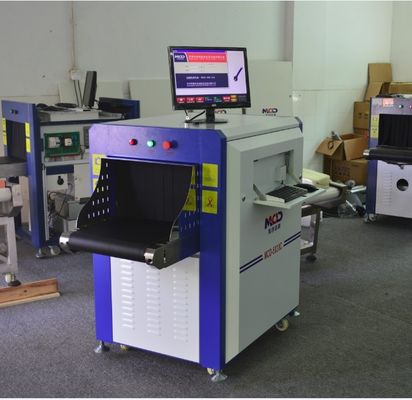

Large Image :  Professional X- Ray Airport Baggage Scanner , Mini X-Ray Scanner for factory security

Product Details:

Place of Origin: China
Brand Name: MCD
Certification: ISO , CE
Model Number: MCD-5030C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Strong Wooden Case
Delivery Time: Normally within 5 working days
Payment Terms: T/T , Western Union , L/C
Supply Ability: 300 set/month
Contact Now
Detailed Product Description
Tunnel Size: 500(W)*300(H)mm Conveyor Speed: 0.22m/s
Conveyor Max Load: 300kg Dose Per Inspection: <2.9 UGy/h
Resolution: <0.101mmMetal Wire Spatial Resolution Level: Diaφ1.0mm , Vertical:diaφ1.0mm
Through Resolution: φ0.202mm Film Safety: Guarantee ISO1600 Film
Generate Angle: 80 -140degree Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
High Light:

airport baggage scanners

,

airport metal detector


Professional X- Ray Airport Baggage Scanner , Mini X-Ray Scanner for factory security


Product Parameters:

General Specification


Tunnel Size 500(W)*300(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 300kg
Dose per Inspection <2.9 uGy/h
Resolution <0.101mmMetal Wire
Spatial resolution Level diaφ1.0mm , Vertical:diaφ1.0mm
Through resolution φ0.202mm
Penetration 32-36mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage 0.05 uGy/h (at a distance of 5cmFrom external housing)


X-ray Generator
1.Generate direct: Upward
2.Generate angle: 80 degree
3.Anode Voltage: 80-140Kv
4.Anode power: 0.4 to 0.5mA
5.Cooling / Duty Cycle: Oil Cooling /100%

Image System

X-ray Sensor  L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Detector 2
Color display full color
Image Processing

Edge enhancement, image strengthening, Image lightening,
reducing  darkening, image returning, image retrieval.

Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zones & Zoom

1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen
 continuous observation

Multi-energeti       distinguish objects

organic objects in orange,inorganic objects in blue,

mixture in green


Installation Data
1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
2.Storage Temperature/Humidity-26℃~60/20%-95%(non-condensing)
3.Operation Power:220AVC/(±10)50Hz±3Hz
4.Power Consumption:1.0KW(Max),0.3KW(working)
5.Noise: <55 dB


Feature and Application:
X-rays through inspection,Which show object interior metal structure by LCD screen.Applied
 to factory inspection products and institutions of the security. Such as electronic factory,
shoe factories, toy factories, court and station, as well as large activities handbag security.
