Airport Subway X Ray Airport Baggage Scanners Gun Metal Detector With Conveyor Belt

China Airport Subway X Ray Airport Baggage Scanners Gun Metal Detector With Conveyor Belt supplier
Airport Subway X Ray Airport Baggage Scanners Gun Metal Detector With Conveyor Belt supplier Airport Subway X Ray Airport Baggage Scanners Gun Metal Detector With Conveyor Belt supplier Airport Subway X Ray Airport Baggage Scanners Gun Metal Detector With Conveyor Belt supplier Airport Subway X Ray Airport Baggage Scanners Gun Metal Detector With Conveyor Belt supplier

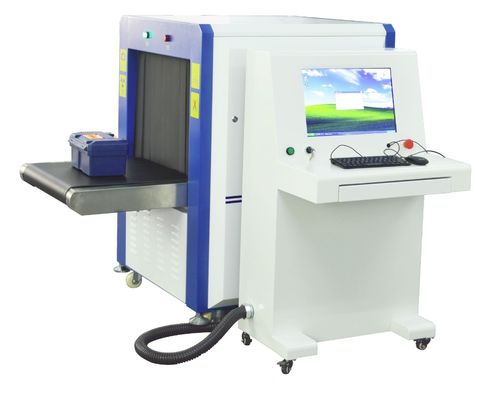

Large Image :  Airport Subway X Ray Airport Baggage Scanners Gun Metal Detector With Conveyor Belt

Product Details:

Place of Origin: China
Brand Name: MCD
Certification: ISO , CE
Model Number: MCD-6550

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Strong Wooden Case
Delivery Time: Normally within 5 working days
Payment Terms: T/T , Western Union , L/C
Supply Ability: 300 set/month
Contact Now
Detailed Product Description
Tunnel Size: 650(W)*500(H)mm Conveyor Speed: 0.22m/s
Conveyor Max Load: 170kg Dose Per Inspection: <1.4uGy/h
Resolution: <0.0787mmMetal Wire Spatial Resolution Level: Diaφ1.0mm , Vertical:diaφ1.0mm
Through Resolution: φ0.254mm Penetration: 34mm Steel
Film Safety: Guarantee ISO1600 Film X-ray Leakage: 0.05 UGy/h (at A Distance Of 5cmFrom External Housing)



Airport Subway X Ray Airport Baggage Scanners Gun Metal Detector With Conveyor Belt





Product Parameters:



General Specification



Tunnel Size 650(W)*500(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load 170kg
Dose per Inspection <1.4uGy/h
Resolution <0.0787mmMetal Wire
Spatial resolution Level diaφ1.0mm , Vertical:diaφ1.0mm
Through resolution φ0.254mm
Penetration 34mm Steel
Film Safety Guarantee ISO1600 Film
X-ray Leakage 0.05 uGy/h (at a distance of 5cmFrom external housing)




 X-ray Generator
 1.Generate direct: Upward
 2.Generate angle: 80 degree
 3.Anode Voltage: 100~160Kv
 4.Anode power: 0.4 to 1.2mA
 5.Cooling / Duty Cycle: Oil Cooling /100%


Image System



X-ray Sensor  L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Detector 2
Color display full color
Image Processing

Edge enhancement, image strengthening, Image lightening,

reducing  darkening, image returning, image retrieval.

Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zones & Zoom

1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen

 continuous observation

Multi-energeti       distinguish objects

organic objects in orange,inorganic objects in blue,

mixture in green

 High-energy/low energy

 switch from high energy to low energy





 Installation Data

1.Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)

2.Storage Temperature/Humidity-26℃~60/20%-95%(non-condensing)

3.Operation Power:220AVC/(±10)50Hz±3Hz

4.Power Consumption:1.0KW(Max)

5.Noise: <65 dB



Feature and Application:

X-ray penetrate inspection, the object can be found within the metal structure, can display the naked

eye can not see where the liquid is also very obvious object display.Used in the factory testing of

security products and business units such as: electronic factories, shoe factories, toy factories,

courts, railway stations, and event bag, line security management package



Airport Subway X Ray Airport Baggage Scanners Gun Metal Detector With Conveyor Belt

Airport Subway X Ray Airport Baggage Scanners Gun Metal Detector With Conveyor Belt
