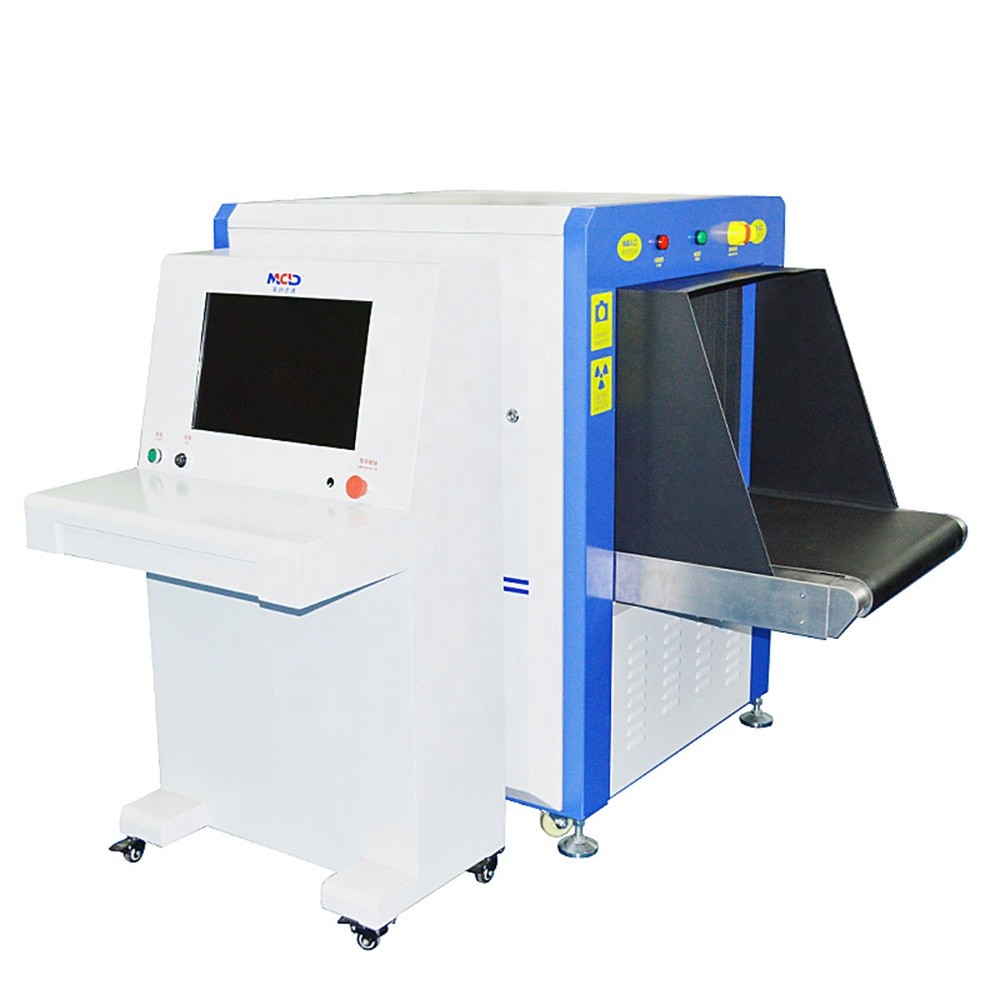

X- Ray Luggage Security Machine Luggage Scanner Machine MCD6550

X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550
X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550

Large Image :  X- Ray Luggage Security Machine Luggage Scanner Machine MCD6550 Get Best Price

Product Details:

Place of Origin: China
Brand Name: MCD
Certification: ISO , CE
Model Number: MCD-6550

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 1-9 Sets $5,450.00 10-29 Sets $4,680.00 >=30 Sets $3,950.00
Packaging Details: Strong Wooden Case
Delivery Time: Normally within 5 working days
Payment Terms: T/T , Western Union , L/C
Supply Ability: 300 set/month
Detailed Product Description
Tunnel Size:: 650(W)*500(H)mm Conveyor Speed:: 0.22m/s
Conveyor Max Load:: 370kg Dose Per Inspection:: <1.4uGy/h
Resolution:: <0.0787mmMetal Wire Penetrate Resolution:: Dia 0.254mm
Penetration:: 34-38mm Steel Film Safety:: Guarantee ISO1600 Film
X-ray Leakage:: <0.05 UGy/h (at A Distance Of 5cm From External Housing) Anode Voltage:: 100~160Kv
High Light:

x ray inspection equipment

,

security x ray machine



Middle x Ray Screening Machine , Luggage X Ray Security Machine



Product Parameters:



General Specification


  • 1. Tunnel Size: 650(W)*500(H)mm
  • 2. Conveyor Speed: 0.22m/s (adjustable)
  • 3. Conveyor Max Load: 370kg
  • 4. Dose per Inspection: <1.4uGy/h
  • 5. Resolution: <0.0787mmMetal Wire
  • 6. Spatial resolution Level:dia1.0mm , Vertical:dia1.0mm
  • 7. Penetrate resolution:Dia 0.254mm
  • 8. Penetration: 34-38mm Steel
  • 9. Film Safety: Guarantee ISO1600 Film
  • 10.. X-ray Leakage: <0.05 uGy/h (at a distance of 5cm From external housing)


X-ray Generator


  • 1. Generate direct: Upward
  • 2. Generate angle: 80 degree
  • 3. Anode Voltage: 100~160Kv
  • 4. Anode power: 0.4 to 1.2mA
  • 5. Cooling / Duty Cycle: Oil Cooling /100%


Image System


  • 1. X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
  • 2. Monitor: High Resolution Color, LCD Accord, 19 inch
  • 3. Detector:2
  • 4. Color display:full color
  • 5. Image Processing: Edge enhancement, image strengthening,
  •      image lightening,reducing  darkening, image returning, image retrieval.
  • 6. Image Grey Level: 4096
  • 7. Image Max Resolution: 1024 * 1280 pixel
  • 8. Image Processing: 24bit for processing real time
  • 9. Image storage: Storage 60000 pictures in real time
  • 10. Zones & Zoom: 1-9 Image regions, 2,4,8,16 .32.64 Times Enlarge,
  •       Whole screen continuous observation
  • 11. Multi-energetic distinguish objects: organic objects in orange,
  •       inorganic objects in blue, mixture in green
  • 12. High-energy/low energy:switch from high energy to low energy
  • 13. Assist to detect drug and explosive powder
  • 14.Seven colors and Nine colors for picture ( optional )
  • UV desifection funtion in machine tunnel for every package ( optional )

X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 0

Installation Data

  • 1. Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
  • 2. Storage Temperature/Humidity: -26℃~60℃/20%-95%(non-condensing)
  • 3. Operation Power:220AVC/(±10)50Hz±3Hz
  • 4. Power Consumption:1.0KW(Max)
  • 5. Noise: <58 dB



Feature and Application:

X-ray penetrate inspection, the object can be found within the metal structure, can display the naked

eye can not see where the liquid is also very obvious object display.Used in the factory testing of security

products and business units such as: electronic factories, shoe factories, toy factories, courts,

railway stations,and event bag, line security management package



X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 1

X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 2

X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 3

X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 4

X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 5

X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 6

X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 7X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 8

X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 9X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 10

X- Ray  Luggage Security Machine Luggage Scanner Machine MCD6550 11





MCD-6550 User Manual.pdf

MCD-6550 baggage scanner.pdf
